Rain Bird VAN Nozzles can be adjusted to the exact pattern of your lawn, ensuring your landscape will be precisely watered, so you don’t need to worry about it. They are ideal for odd-shaped corners and smaller grassy areas around sidewalks and driveways; they can also be used for watering flowerbeds or shrubs.
Features & Benefits
A simple twist of the center collar with no special tools increases or decreasesarc setting, making it ideal for watering odd-shaped areas
Quickly identify radius with Top Colour-coded nozzles, even when system is not operating
Easy arc adjustment from 0° to 330° for VAN Arc 4ft, 6ft and 8ft models
The textured base and collar are easy to grip, even when wet
A physical left edge indicator makes it easier to feel the fixed left edge
Stainless steel adjustment screw to adjust flow and radius
"Captured" screw slot prevents screwdriver slippage during adjustment

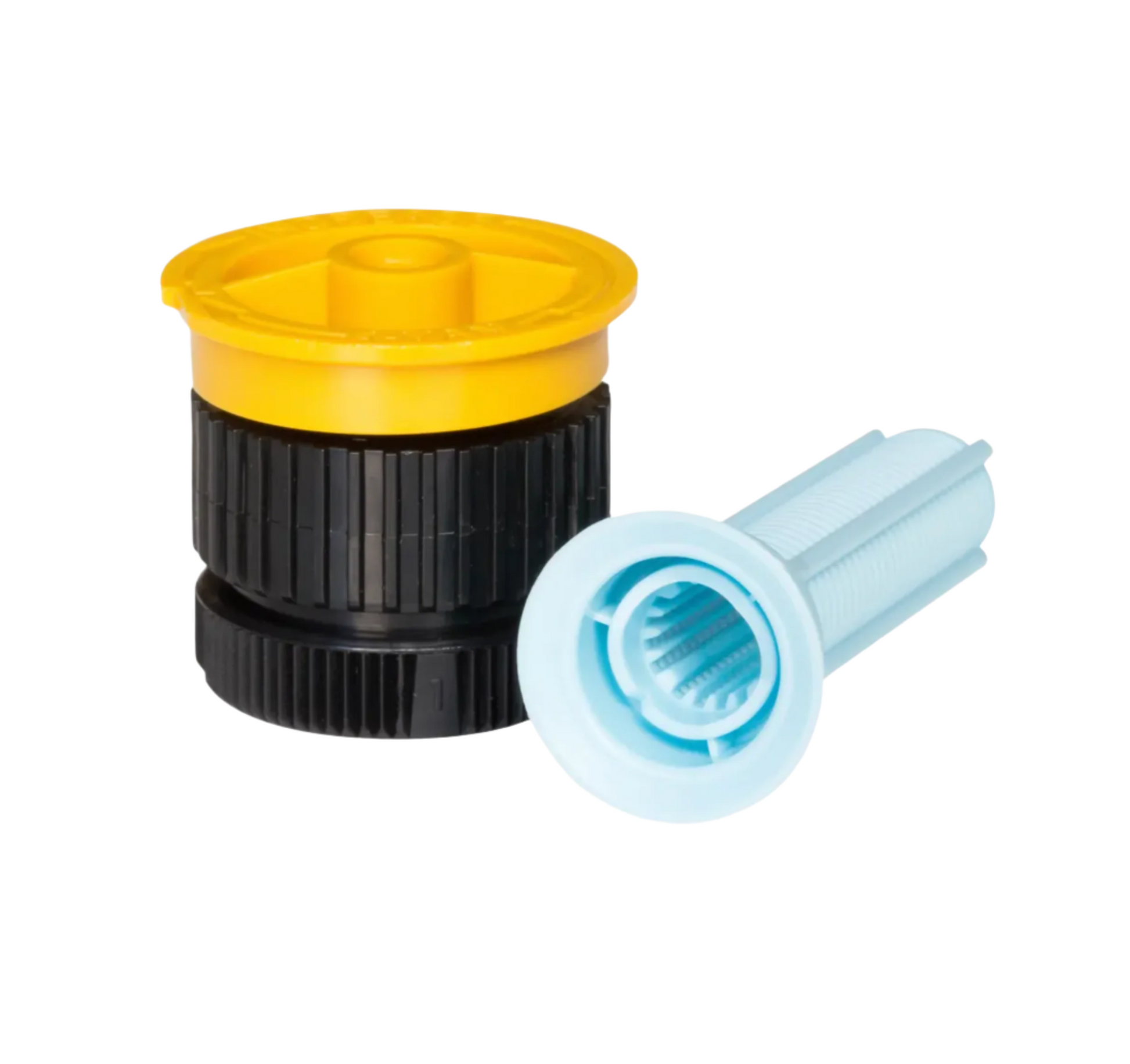

Blue filter screen (.02" x .02") (shipped with nozzles) maintains precise radius adjustment and prevents clogging
Fits all Rain Bird sprinklers and shrub adapters

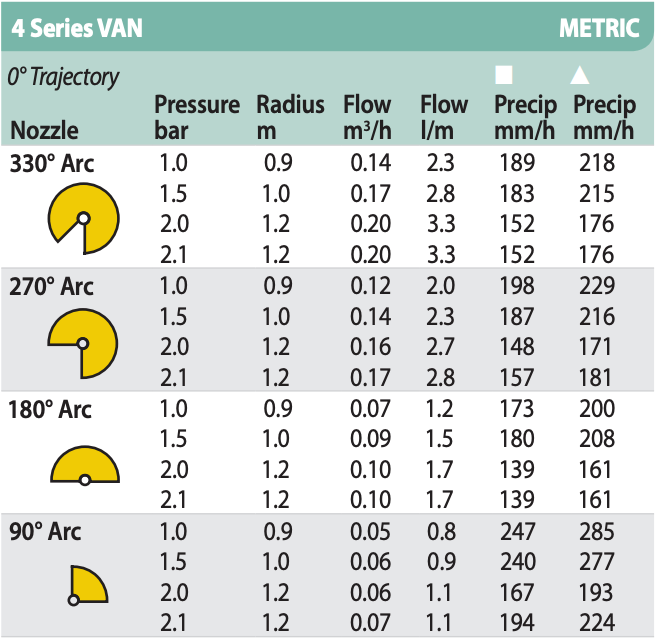

Specifications
Rainbird Model: 4VAN
Coverage Radius: 3 to 4 feet (0.9 to 1.2 m)
Pressure: 15 to 30 psi (1.0 to 2.1 bar)
Optimum pressure: 30 psi (2.1 bar)**
** Rain Bird recommends using 1800 PRS Spray Bodies to maintain optimum nozzle performance in higher pressure situations
This product is Equivalent to: K-Rain: KVF Range is a direct replacement (Also sold on Aquadale) Hunter: 4A
