Rain Bird UNI-Spray 4" Pop-Up Sprayer with VAN Arc Nozzle - 12ft Coverage
Rain Bird UNI-Spray 4" Pop-Up Sprayer with VAN Arc Nozzle - 12ft Coverage

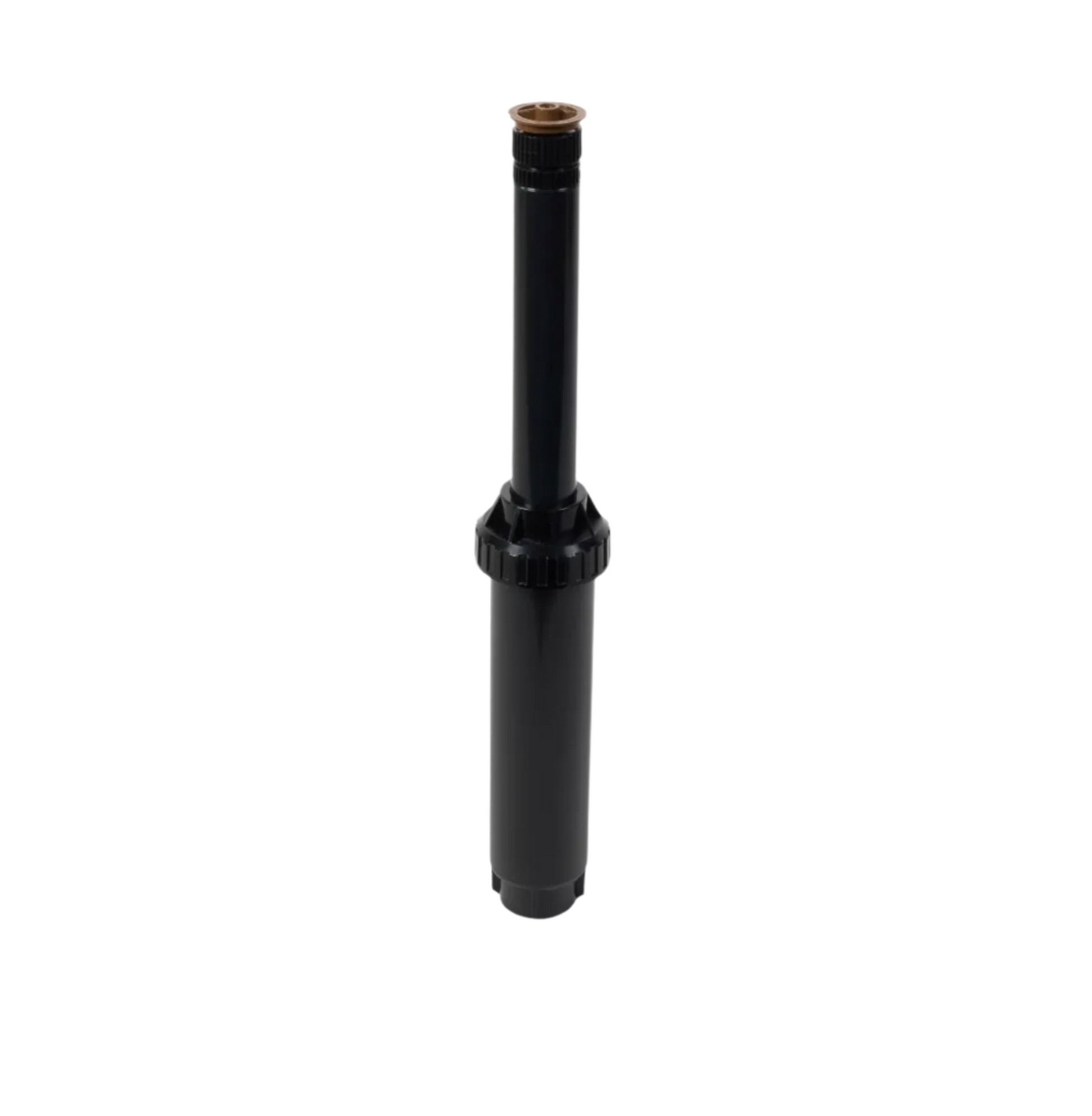

Uni-Spray pop-Up body 4" (100mm) with VAN Series Variable Arc Nozzle - 12ft
The UNI-Spray™ accepts all Rain Bird nozzles, including MPR, VAN and U-Series, making it an excellent choice for watering standard and irregular-shaped turf and shrub areas. For added convenience, these reliable, compact spray heads can be shipped with or without pre-installed Variable Arc Nozzles (VANs) that are adjustable from 0° to full circle operation, saving hours of installation time, effort and money., compact spray heads can be shipped with or without pre-installed Variable Arc Nozzles (VANs) that are adjustable from 0° to full circle operation, saving hours of installation time, effort and money.
Code: US412
Features
- Rainbird 4" pop up spray with 12-VAN nozzle
- Pressure-activated, wiper seal prevents excessive flow-by and water waste. Keeps debris from entering upon retraction
- Durable stem ratchet allows for quick and easy nozzle pattern alignment
- Internal parts removable from the top of the sprinkler for easy servicing
- Small exposed cover makes the unit virtually invisible for more attractive landscapes
- Rugged cover and body provide durability in high pressure and surge conditions
- Plastic and stainless steel materials resist corrosion
- VAN nozzle and screen are easily removable for flushing
- UNI-Spray™ accepts all Rain Bird® Series nozzles and accessories, which simplifies inventory management
Specifications
- Pressure: 15 to 70 psi (1,0 to 4,8 bar)
- Optimum Pressure: 30 psi (2 bar)
- Adjustable nozzle arc range: 0° - 360°
- Flow-by: 0 at 10 psi (0,75 bar) or greater; 0.20 GPM (0,04 m3/h; 0,01 l/s) otherwise
- 1/2" (15/21) NPT female threaded inlet
- Body height: 5 7/8" (15 cm)
- Exposed surface diameter: 1 1/4" (3,2 cm)
This product is Equivalent to:
K-Rain: 4" Pop-Up Sprayer – 12ft Coverage (NP4-KVF12) this is a direct alternative to the UNI-Spray 412 series (also sold on Aquadale)
Hunter: PS Ultra 4" with adj nozzle
Orbit: 102912HR
