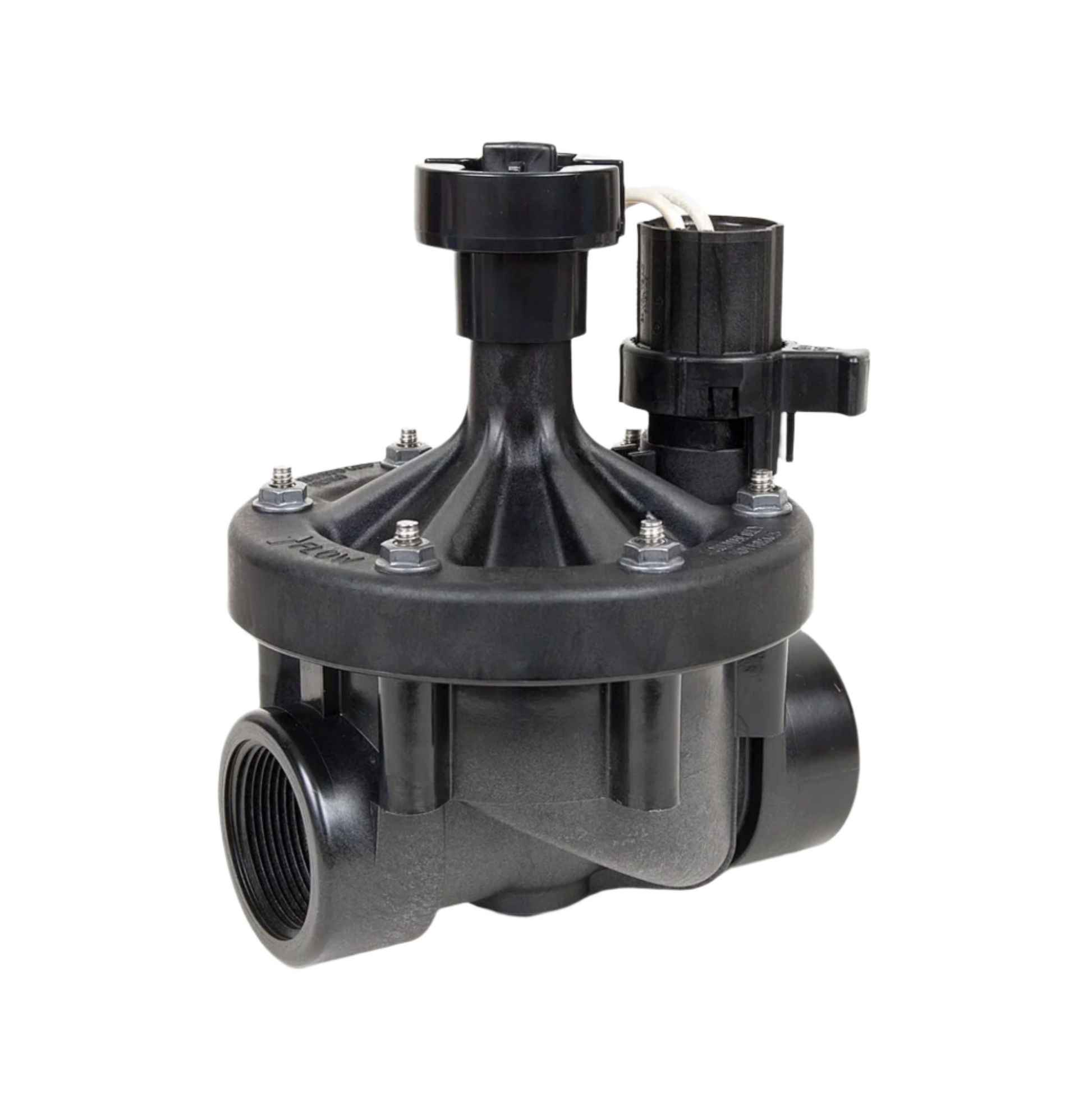

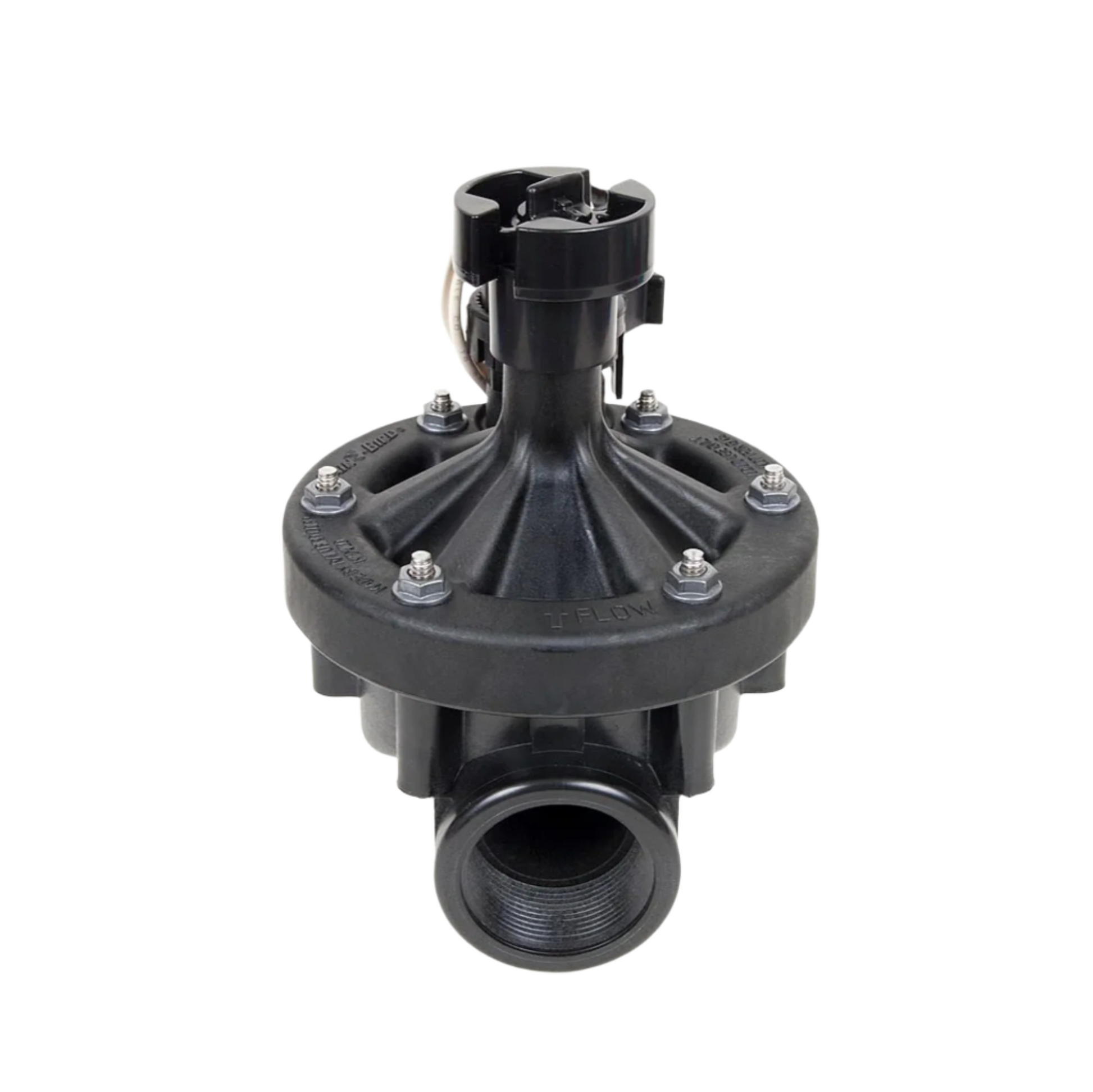

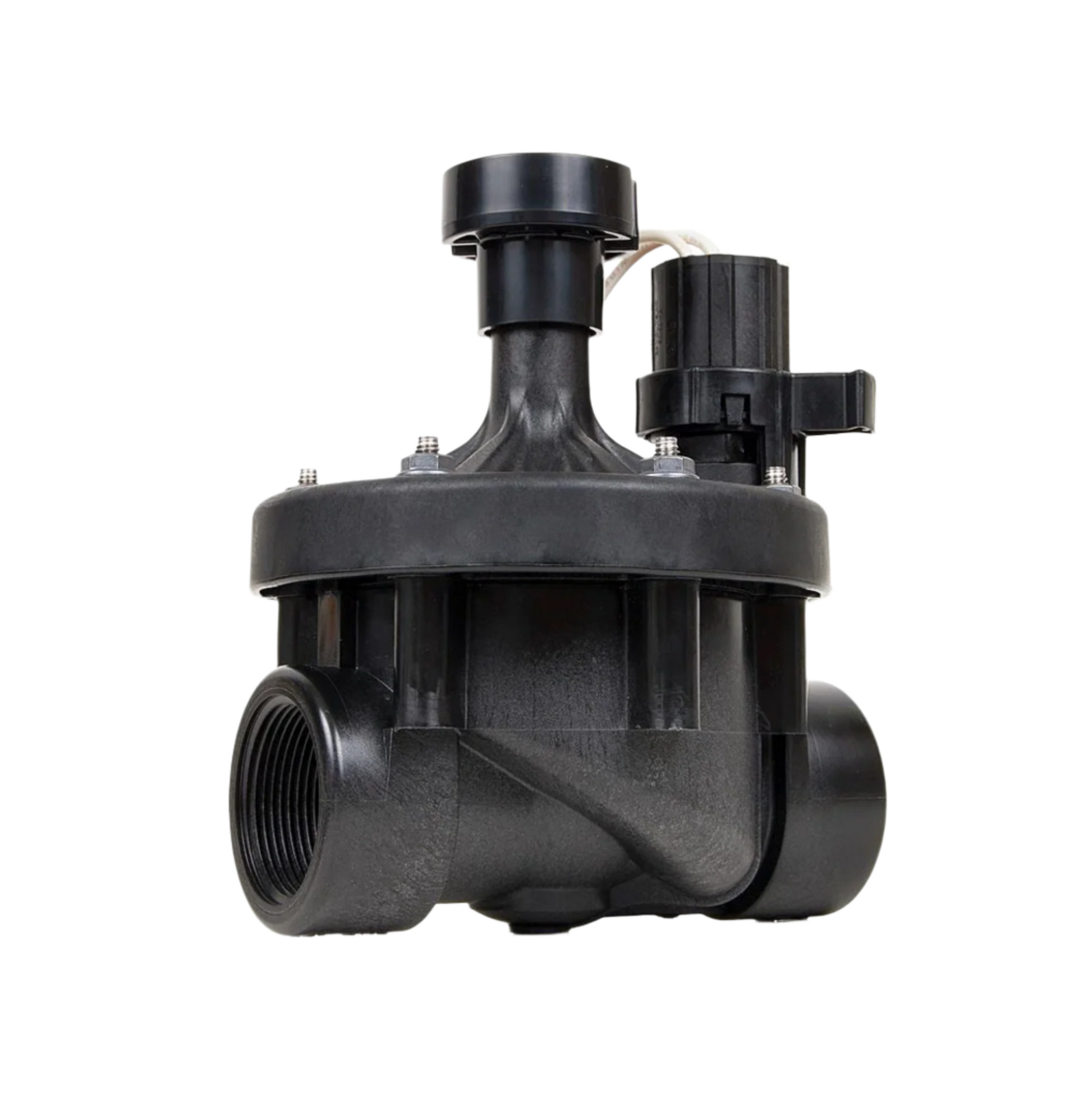

Rain Bird PEB100 Commercial Solenoid Valve with Flow Control: 25mm BSP

The PEB Series is Rain Bird's most durable plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications.

This Rainbird model has 25mm BSP thread with Flow Control rated 13.8Bar.

FEATURES AND BENEFITS

• Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance
• Globe configuration

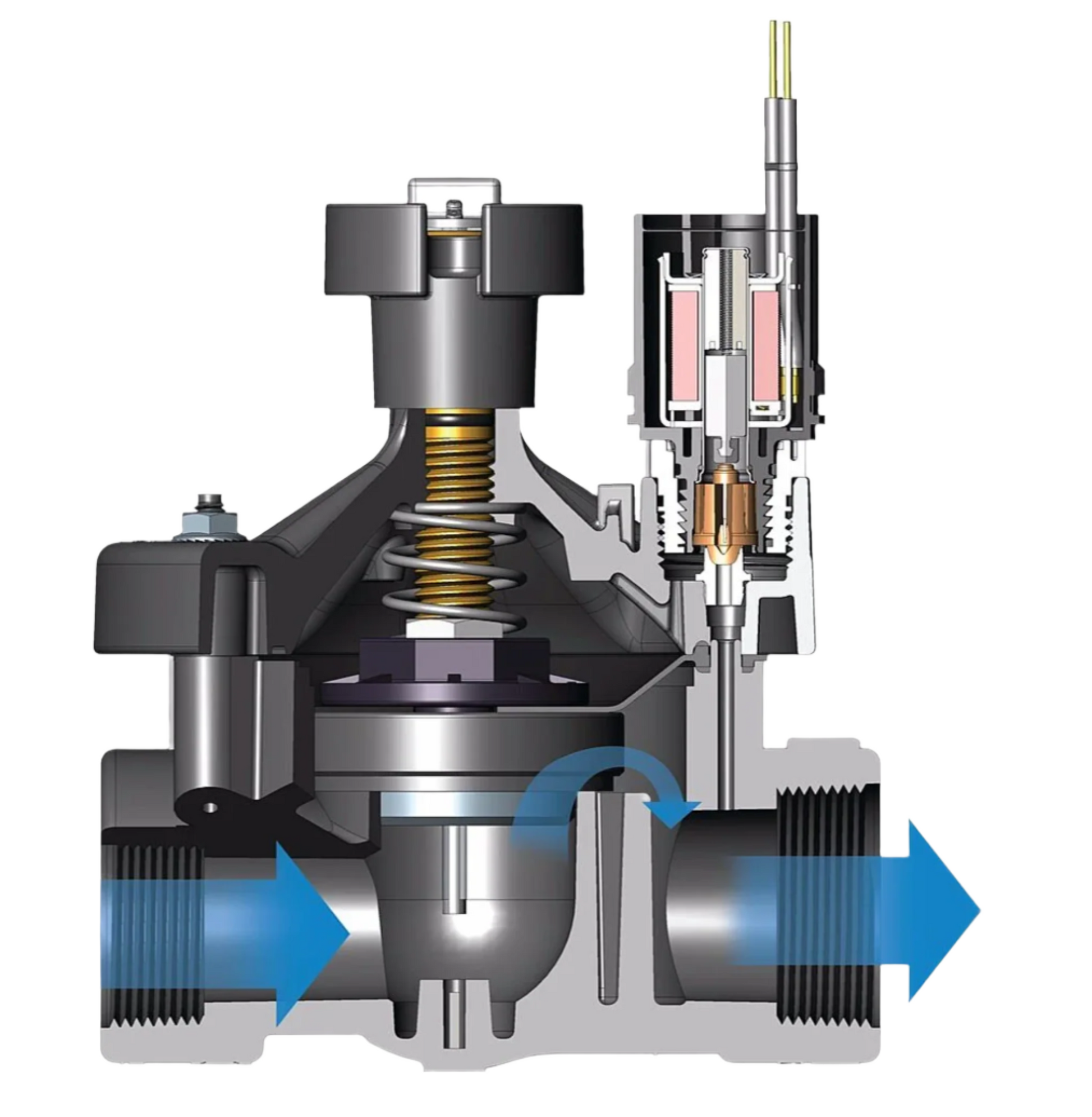

• Normally closed, forward flow design
• Slow closing to prevent water hammer and subsequent system damage
• Low flow capability for a wide range of applications
• One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service
• Flow control handle adjusts water flows as needed
• Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first
• Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs
• Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads

Specs

Code: PEB100
