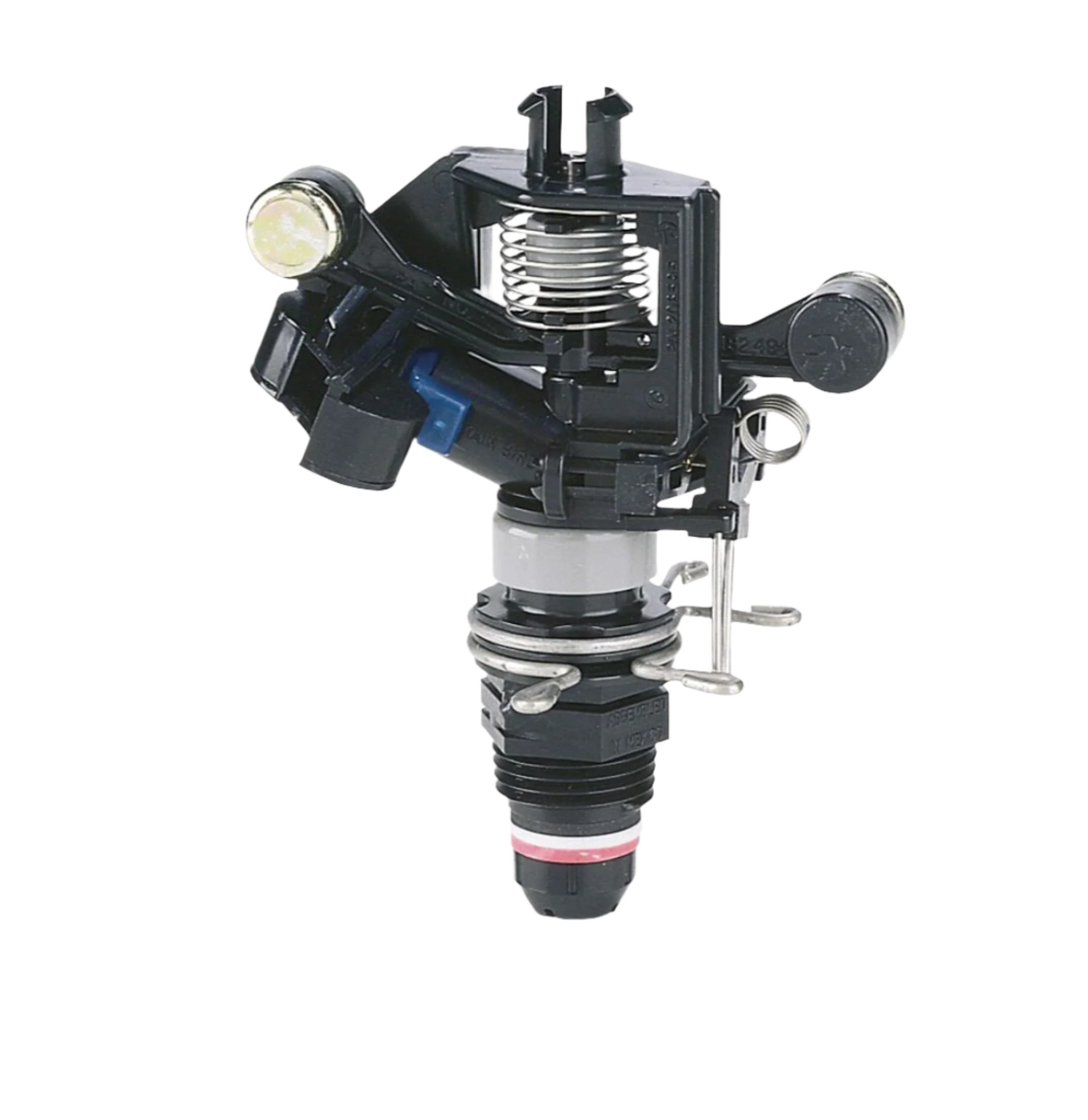

Rain Bird Maxi Bird Impact Sprinkler
Rain Bird Maxi Bird Impact Sprinkler
Regular price
R 276.00
Regular price
Sale price
R 276.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Dirty Water Applications - Spacing Up to 13.7m
Designed for a variety of uses where full circle sprinklers should not overthrow water into restricted areas. The body, arm, bearing sleeve and nipple are made of durable Delrin™ plastic.
Code: Maxi-Bird
Features
- Proven impact drive with straight-through flow for superior performance in dirty water
- Double-weighted arm for slower rotation and increased distance of throw
- Adjustable arm spring for low-pressure and low-gallonage operation
- Precision Jet tube (PJ™) minimizes side splash
- 5 Matched Precipitation Rate (MPR) nozzles and 2 low-angle (LA) nozzles
- Interchangeable, color-coded bayonet mount nozzles
- No tools required to change nozzles
- FP trip permits full circle (360°) or part-circle operation (20° to 340°)
- Powerful reverse action
- Three-year trade warranty
Specs
- Precipitation Rate: 7 to 31 mm per hour
- Radius: 26,7m to 13,7 m
- Radius with Radius Reduction Screw: 18 feet (5,4 m)
- Pressure: 25 to 60 psi (1,7 to 4,1 Bars)
- Flow Rate: 1.5 to 8.4 GPM (0,34 to 1,91 m3/h; 0,09 to 0,53 l/s)
- Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow
- ½" (15/21) male threaded inlet
- Standard trajectory angle nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige
- Nozzle outlet trajectory is 23° for 06, 07, 08, 10, and 12 nozzles
- LA nozzle outlet trajectory is 11°
This product is Equivalent to:
K-Rain: SURE THROW IMPACT SPRINKLER is a direct alternative for the Rain Bird Maxi-Paw (ST-IS45 - Also sold on Aquadale)
Orbit: Pulse XL
