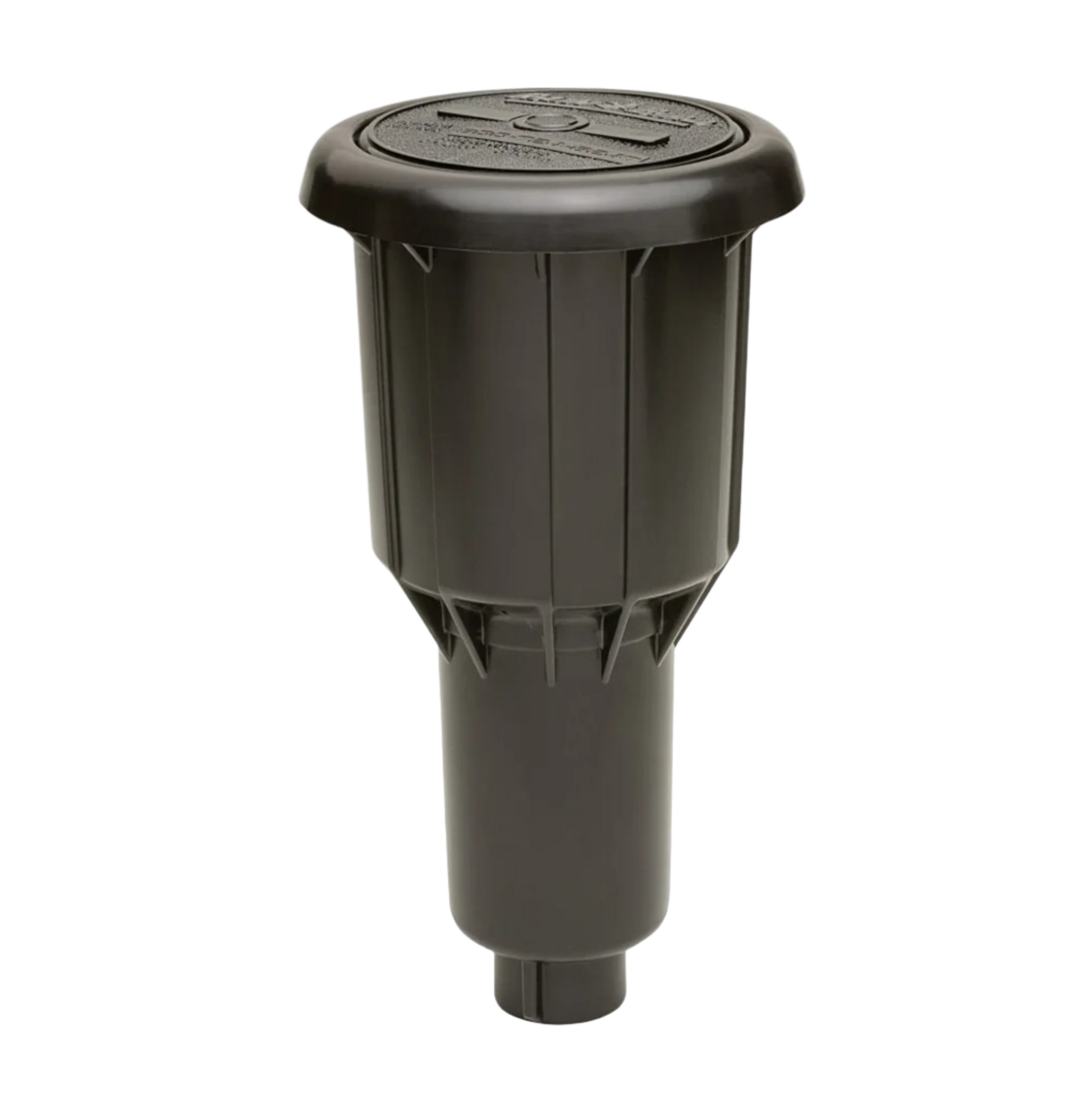

Rain Bird Maxi-Paw Impact Sprinkler
Rain Bird Maxi-Paw Impact Sprinkler
Regular price
R 358.00
Regular price
Sale price
R 358.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Radius: 6,7m to 13,7m

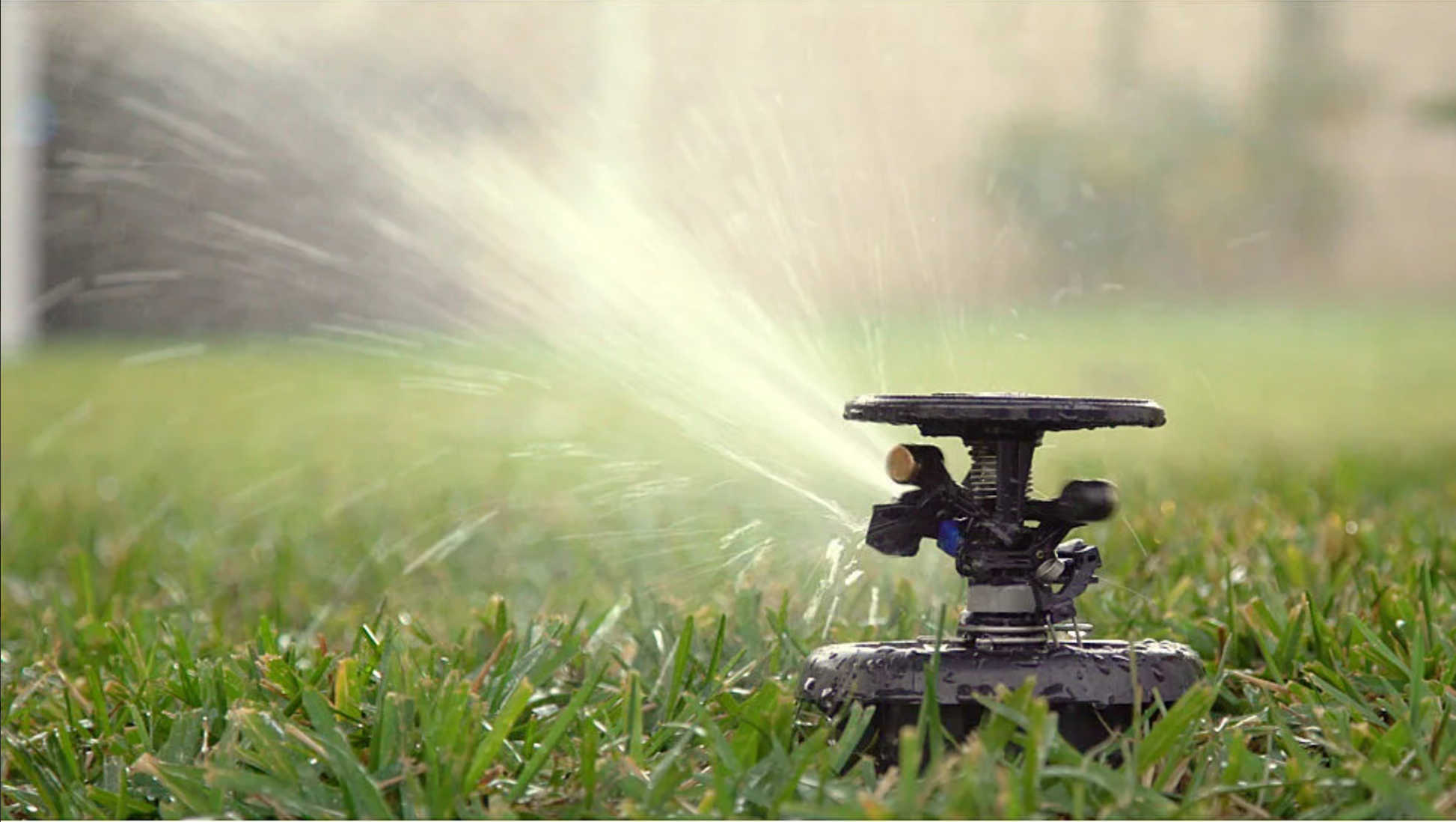

The Maxi-Paw's powerful throw permits maximum spacing and offers superior close-in watering and uniform water distribution. Low pressure loss and an efficient, straight-through flow design conserve energy and are ideal for dirty water applications.
The optional Seal-A-Matic™ prevents run-off, puddling, and erosion caused by low head drainage. And most important, it's rugged and dependable, popping up on schedule again and again because of the multi-function wiper seal.
Rainbird Code: Maxi-Paw
Features

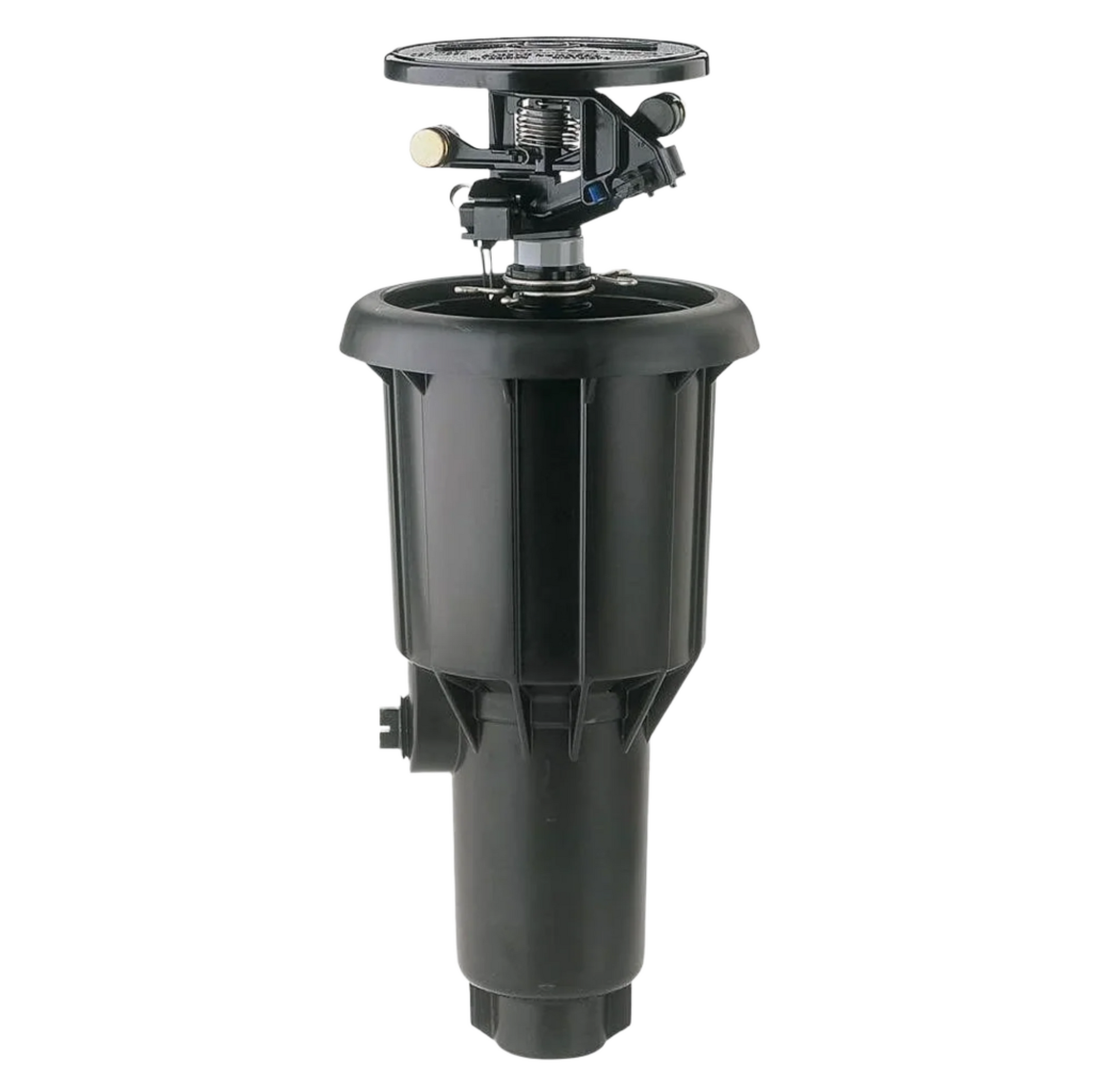

- Proven impact drive with straight-through flow for superior performance in dirty water
- Five standard trajectory and two low angle (LA) color-coded nozzles for matched precipitation and in a wide range of applications
- 360° full-circle OR arc adjustable from 20° to 340°
- Side and combination ½” or ¾” bottom inlet for design flexibility (Maxi-Paw)
- 3 year warranty
Specs
- Precipitation Rate: 7mm to 31 mm per hour
- Radius: 6,7m to 13,7m
- Radius with Radius Reduction Screw: 18 ft (5,4 m)
- Pressure: 25 to 60 psi (1,7 to 4,1 Bars)
- Flow: 1.5 to 8.4 GPM (0,34 to 1,91 m3/h; 0,9 to 0,53 l/s)
- Combination 1/2" (15/21) or 3/4" (20/27) FPT bottom inlet 1/2" (15/21) FPT side inlet
- Nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige
- Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow
- Nozzle outlet trajectory is 23° for 06, 07, 08, 10, and 12 nozzles
- LA nozzle outlet trajectory is 11°
This product is Equivalent to:
K-Rain: SURE THROW IMPACT SPRINKLER is a direct alternative for the Rain Bird Maxi-Paw (ST-IS45 - Also sold on Aquadale)
Orbit: Pulse XL
