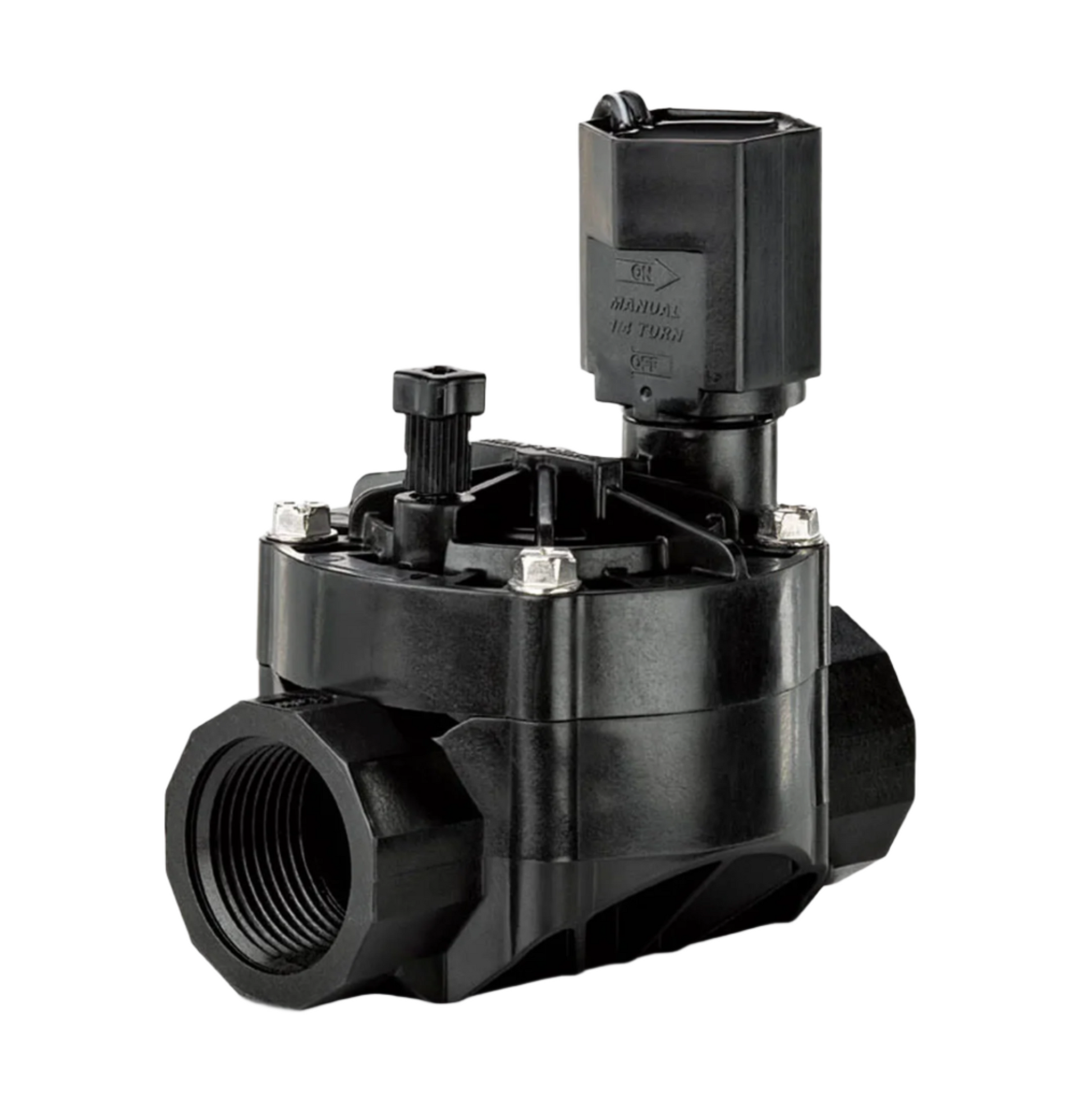

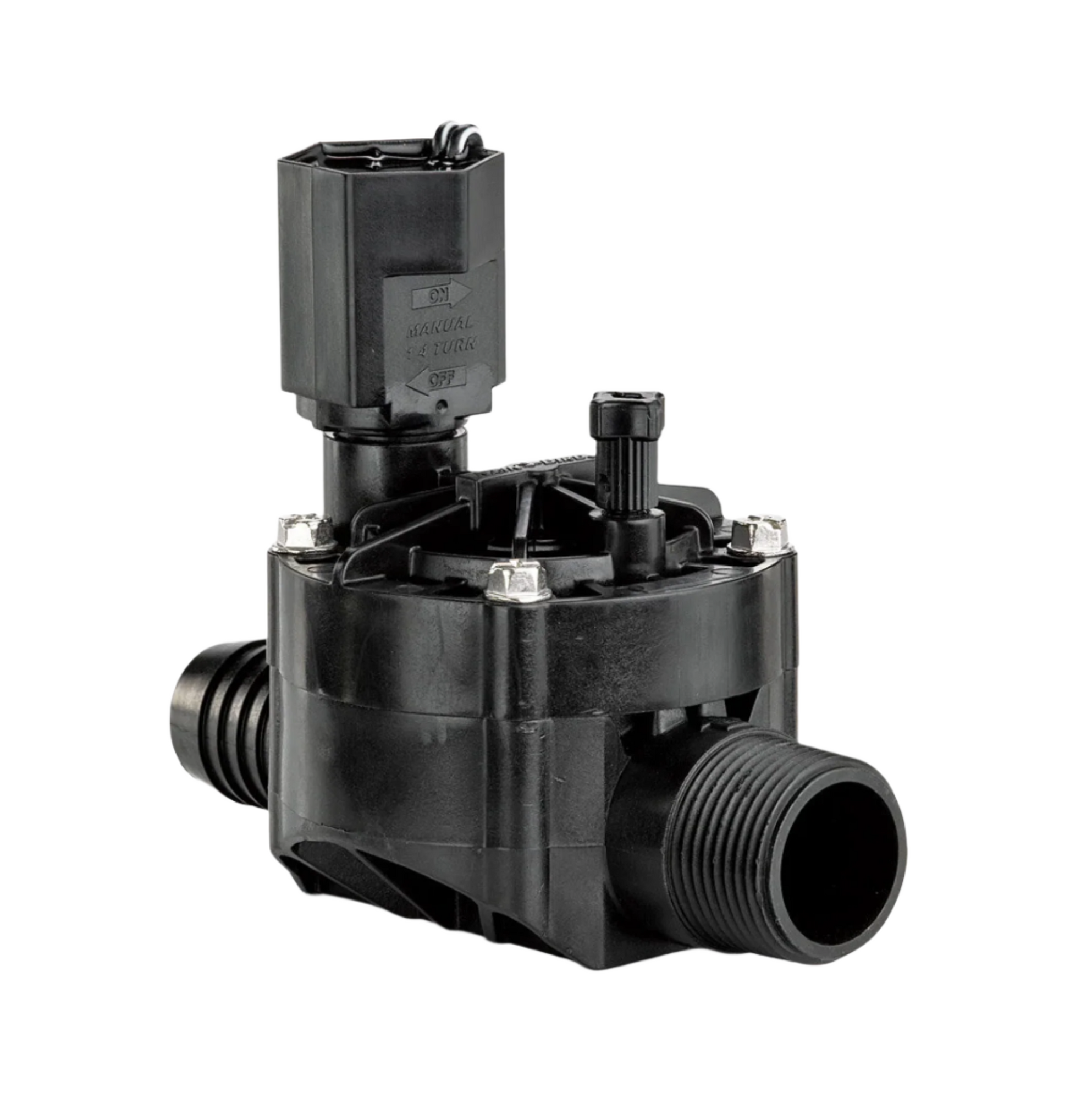

The Rain Bird® HV valve offers the reliableperformance that professionals demand at a low price. Like all Rain Bird valves, HV Valves are built to work with any standard sprinkler timer. HV Valves deliver the same fundamental quality and durability you expect from Rain Bird at a low price. HV Valves are designed with the benefit of over five decades of valve design experience.
This Rainbird model has 25mm BSP thread.
FEATURES AND BENEFITS
Patented, eccentric, balanced pressure, Buna-Ndiaphragm with self-cleaning 90-mesh (200 microns) pilot water filter and captured stainless steel spring – Eccentric design provides smoother closing, less water hammer

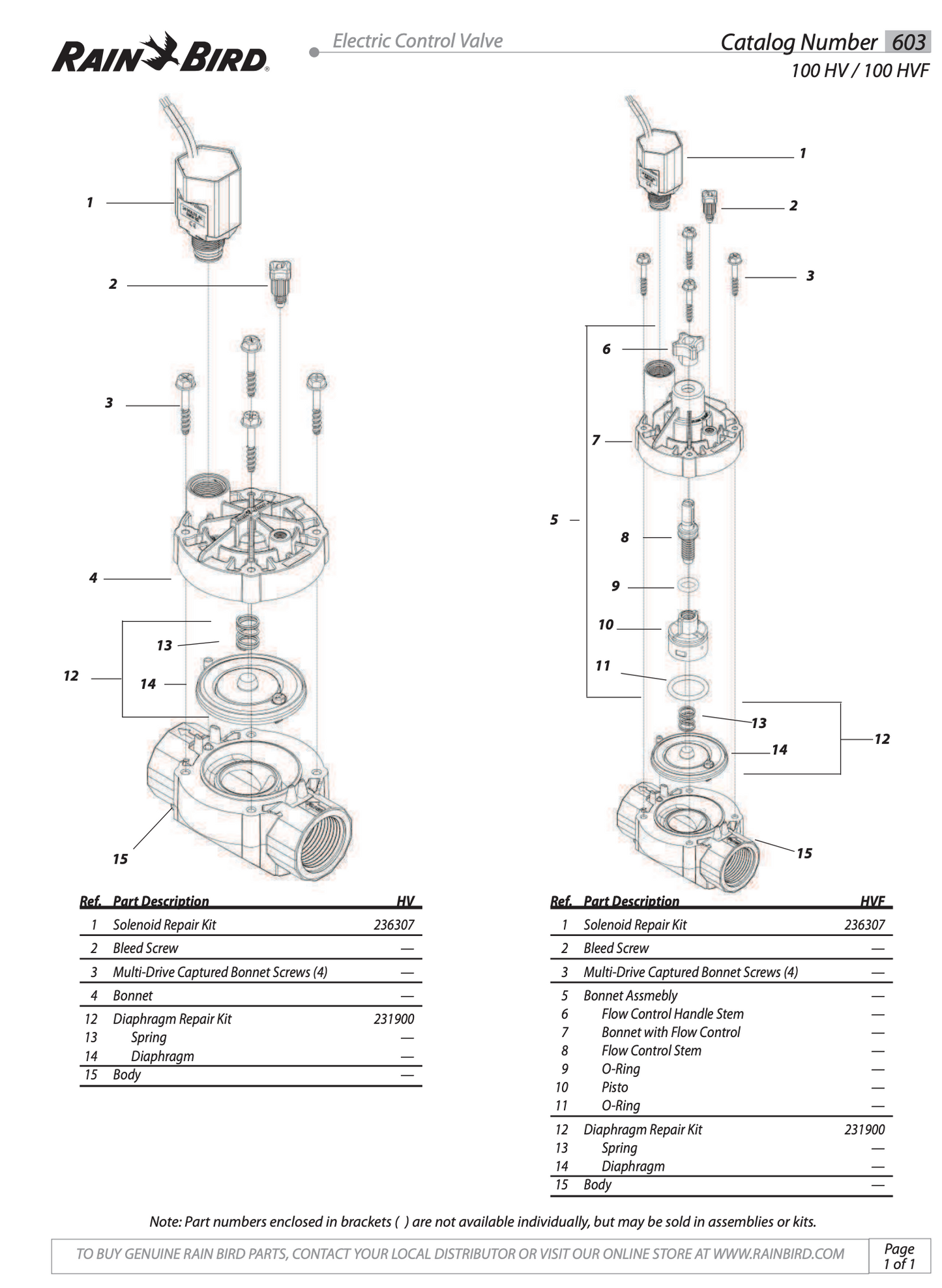

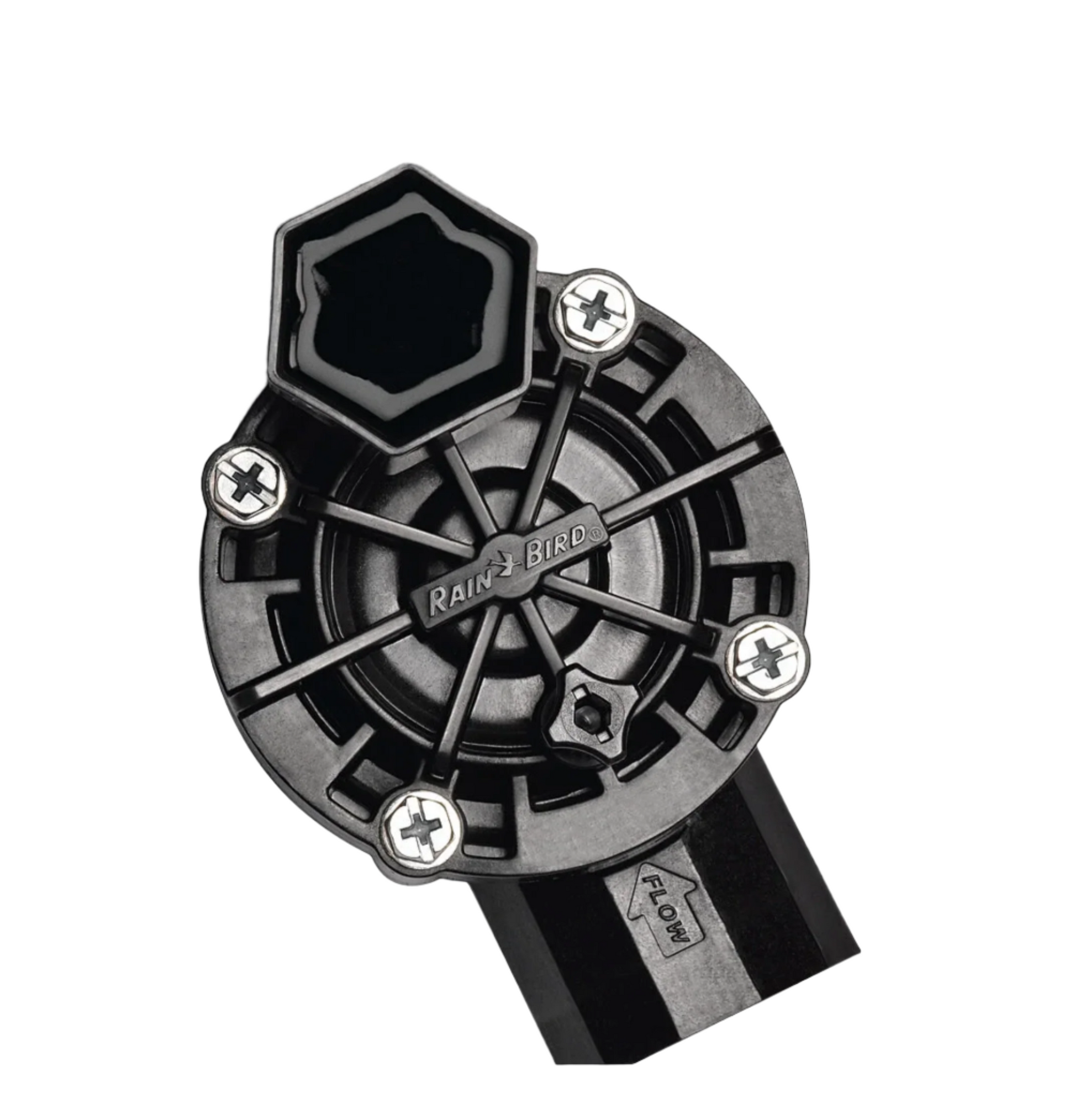

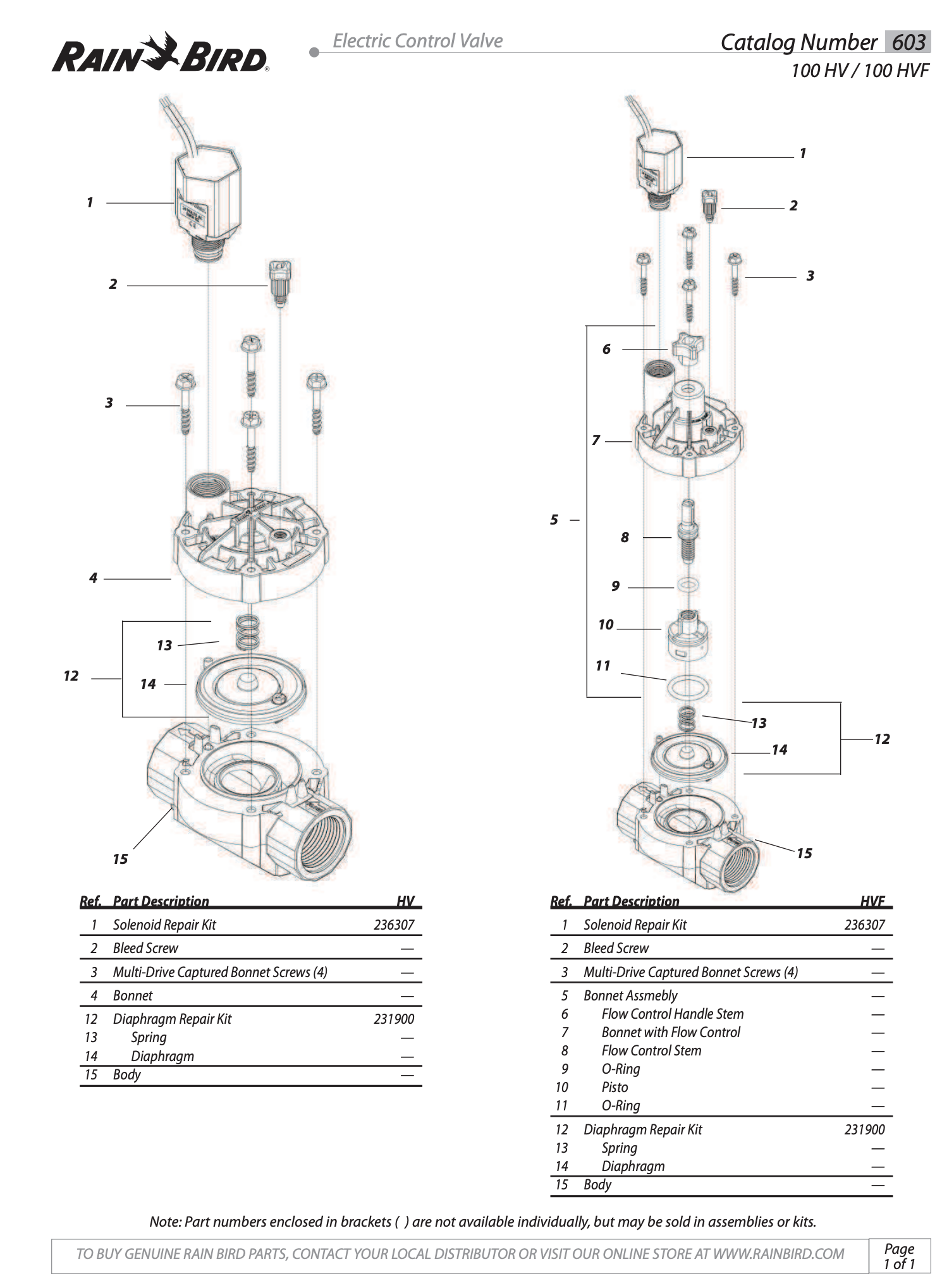

Only four durable, captured multi-drive bonnet screws that come out with half the number of turns for fast and easy servicing – at least twice as fast as the competition
Glass-filled polypropylene body for strength (slip by slip model bodies are PVC)
All popular model configurations available
Compact design, 2.54" spin radius for tight installations
Reverse flow, normally closed design
External bleed to manually flush the system of dirt and debris during installation and system start-up
Internal bleed for spray-free manual operation
Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream
Specs
Pressure: 15 to 150 PSI (1,0 to 10,3 bar)
Flow: 0.2 to 30 GPM (0,05 to 6,82 m3/h; 0,01 to 1,89 l/s); for flows below 3 GPM (0,68 m3/h; 0,19 l/s) or any Landscape Drip application, use a 200 mesh filter installed upstream
Operating Temperatures: Water temperature up to 110° F (43° C); ambient temperature up to 125° F (52° C)
Inrush current: 0.290A at 50/60 Hz
Holding current: 0.091A at 50/60 Hz
Solenoid Coil resistance: 70-85 Ohms (40° F - 110° F)
24 VAC 50/60 Hz (cycles/sec.) solenoid

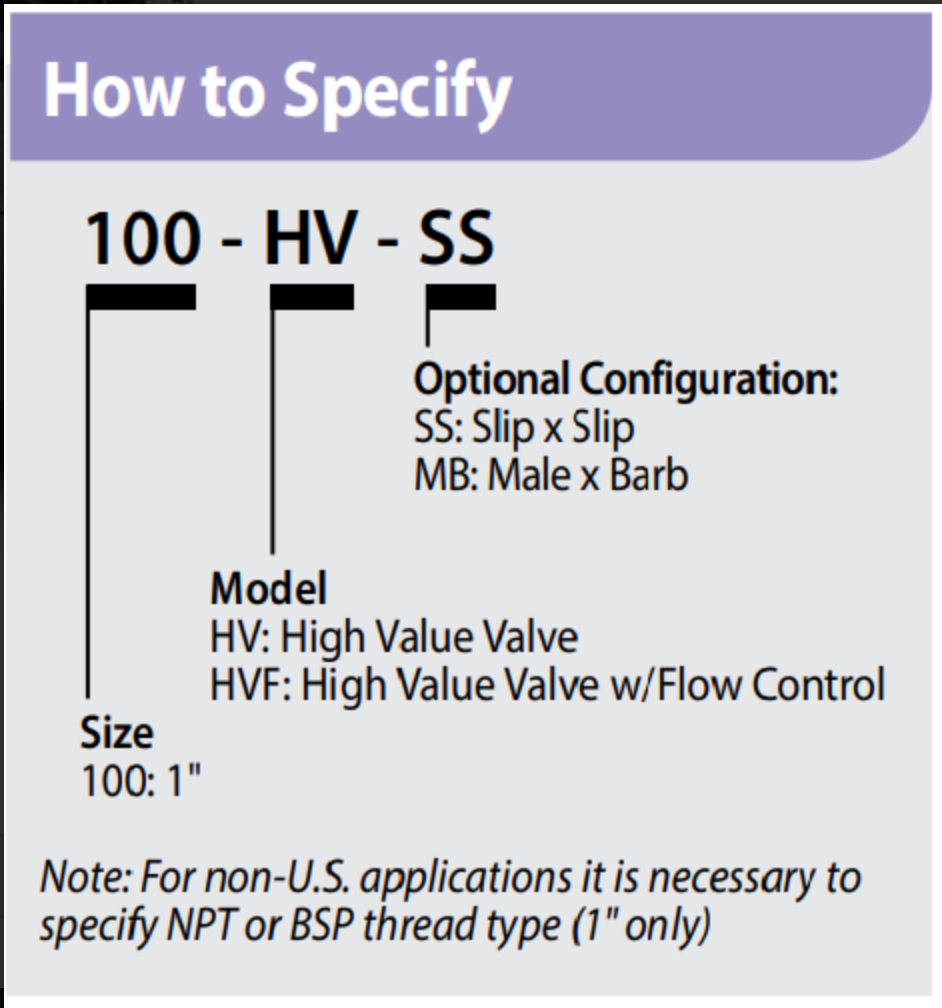

Code: HV100
This product is Equivalent to: K-Rain: 7101-BSP Hunter: PGV 25mm Orbit: 101202
