Reliable and Economical Full and Part-Circle Rotor Pop-Up Sprinkler
11.9m - 19.8m radius
With the Falcon 6504 rotor, you can have it all - uncompromising performance, superior distribution, reliability and durability. Rain Curtain™ nozzles maximise performance and coverage. A multi-function wiper seal and tapered riser keep the stem clear of debris, providing long-term protection. Plus, heavy-duty construction makes the Falcon6504 one of the toughestrotors in the field.
The Falcon 6504 is ideal for large turf sites such as parks, sportfields, cemeteries, schools and commercial sites with spacing up to 19,8m.

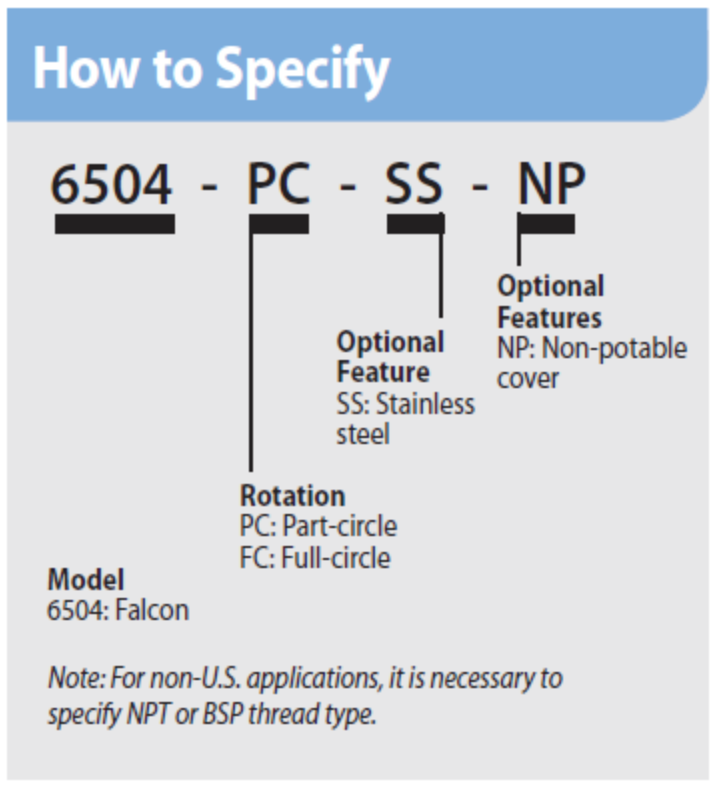

Rainbird Code: Falcon 6504PC/FC
Features
Ratchetingstem just like standard spray bodies
3-port, colour-coded Rain Curtain nozzles for optimal longrange, midrange, and close-in watering
SAM Seal-A-Matic check valve
Heavy-duty, stainless steel retract spring ensures positive pop-down
5 year warranty
Specs
Precipitation Rate: 0.37 to 1.31 inches per hour (9 to 33 mm/h)
Radius: 11,9m to 19,8m
Pressure: 30 to 90 psi (2,1 to 6,2 Bars)
Flow: 2.9 to 21.7 GPM (0,66 to 4,93 m3/h; 0,18 to 1,37 l/s)
Rain Curtain™ Nozzles: Included with rotor, other sizes available upon request; 10-grey, 12-beige, 14-light green, 16-dark brown, 18-dark blue
1" (26/34) female NPT or BSP threaded inlet
SAM check device holds up to 10 feet (3,1 m) of elevation change
Nozzle outlet trajectory is 25°
This product is Equivalent to: K-Rain: 14003-BSP and 14003-SS-BSP are both direct alternatives for the 6504 (Also sold on Aquadale) Hunter: I-25 to I-40
