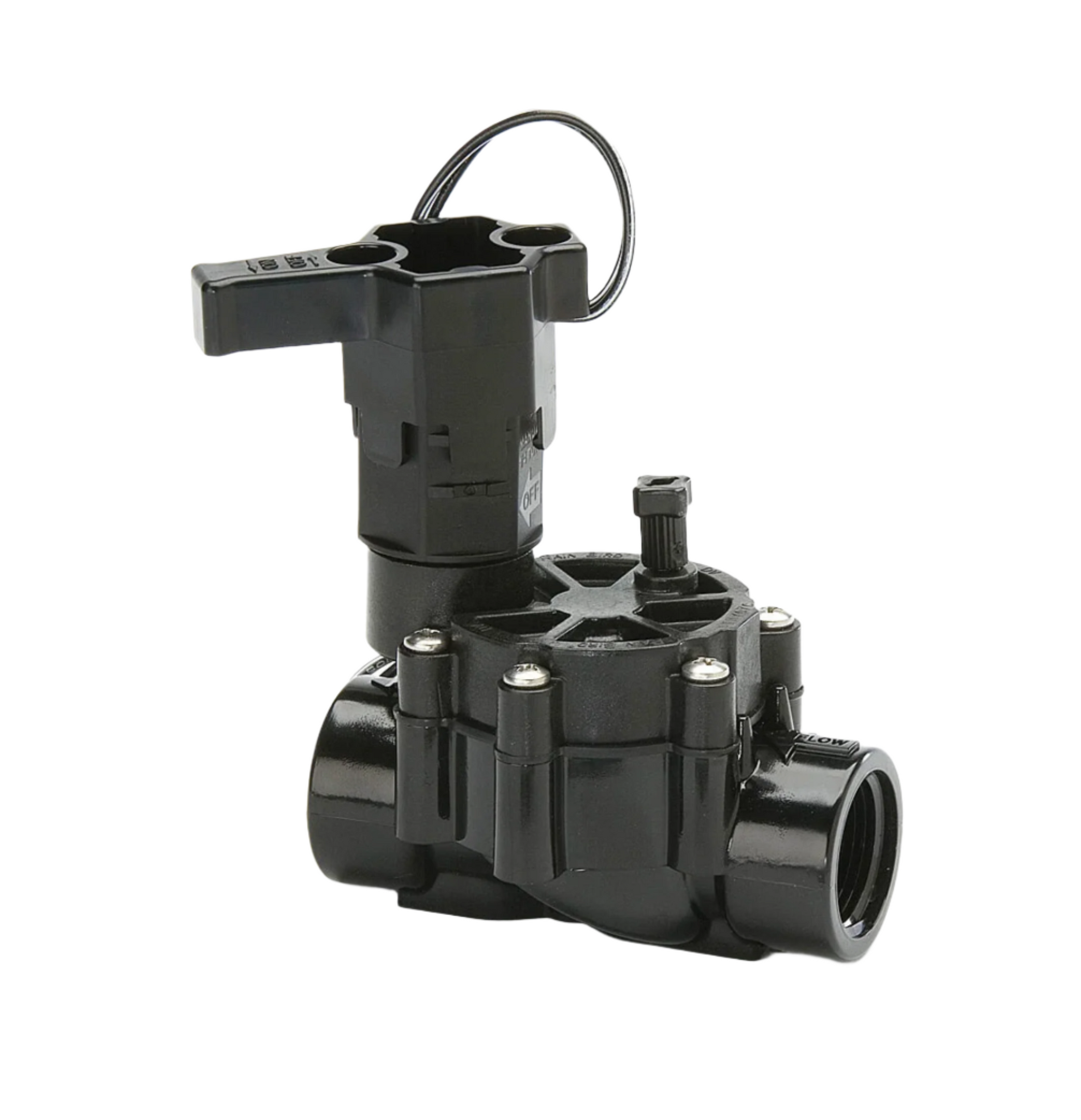

The Rain Bird DV valve is the premium valve product chosen by more professionals than any other valve on the market. Its long history of reliable performance makes it the natural choice for your landscape. Its consistent, problem-free performance means you can spend less time thinking about your irrigation system and more time enjoying your landscape.
All Rain Bird residential valves work with any standard sprinkler timer.
This Rainbird model has 25mm BSP thread.
FEATURES AND BENEFITS
1' (25mm) standard in-line configuration
Double-filtered pilot-flow design for maximum reliability
Balanced-pressure diaphragm for long life
External bleed to manually flush system of dirt and debris during installation and system start-up
Internal bleed for spray-free manual operation
Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
* Solenoid handle is not included *
Specs
Pressure: 15 to 150 PSI (1,0 to 10,4 bar)
Flow: 0.2 to 22 GPM (0,05 to 5,0 m3/h; 0,01 to 1,39 l/s). For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation® application, use a 200 mesh filter installed upstream
Operating Temperatures: Water temperature up to 110° F (43° C); ambient temperature up to 125° F (52° C)
Inrush current: 0.290A at 50/60 Hz
Holding current: 0.091A at 50/60 Hz
Solenoid Coil resistance: 70-85 Ohms (40° F - 110° F)
24 VAC 50/60 Hz (cycles/sec.) solenoid
Code: DV100
This product is Equivalent to: K-Rain: 7001-BSP, however, the Rain bird does not exhibit the same flow as the K-Rain. Hunter: PGV 25mm, however, does not exhibit the same full flow
