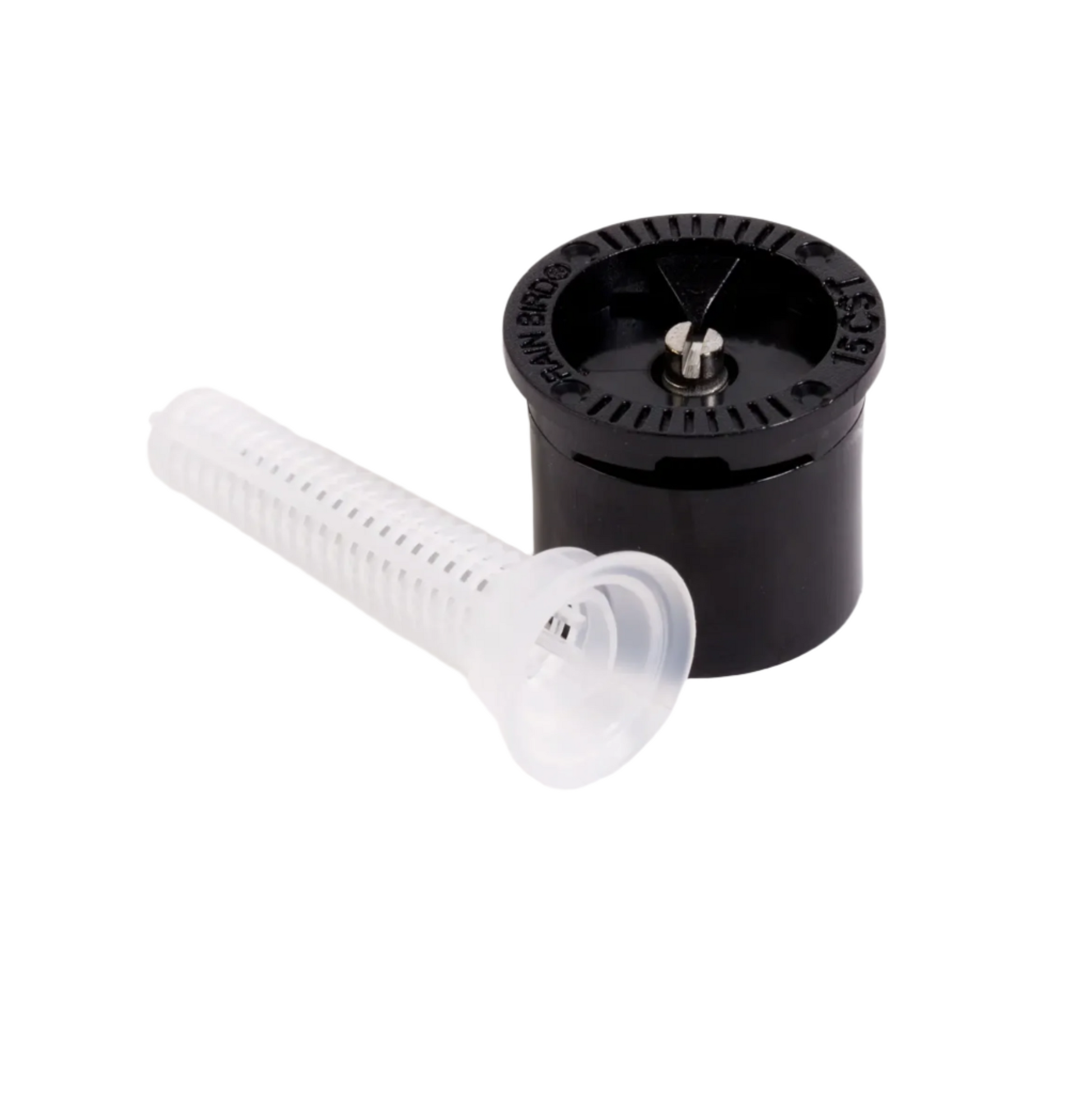

Rain Bird Center Strip Nozzle (15CST) 15 Series MPR

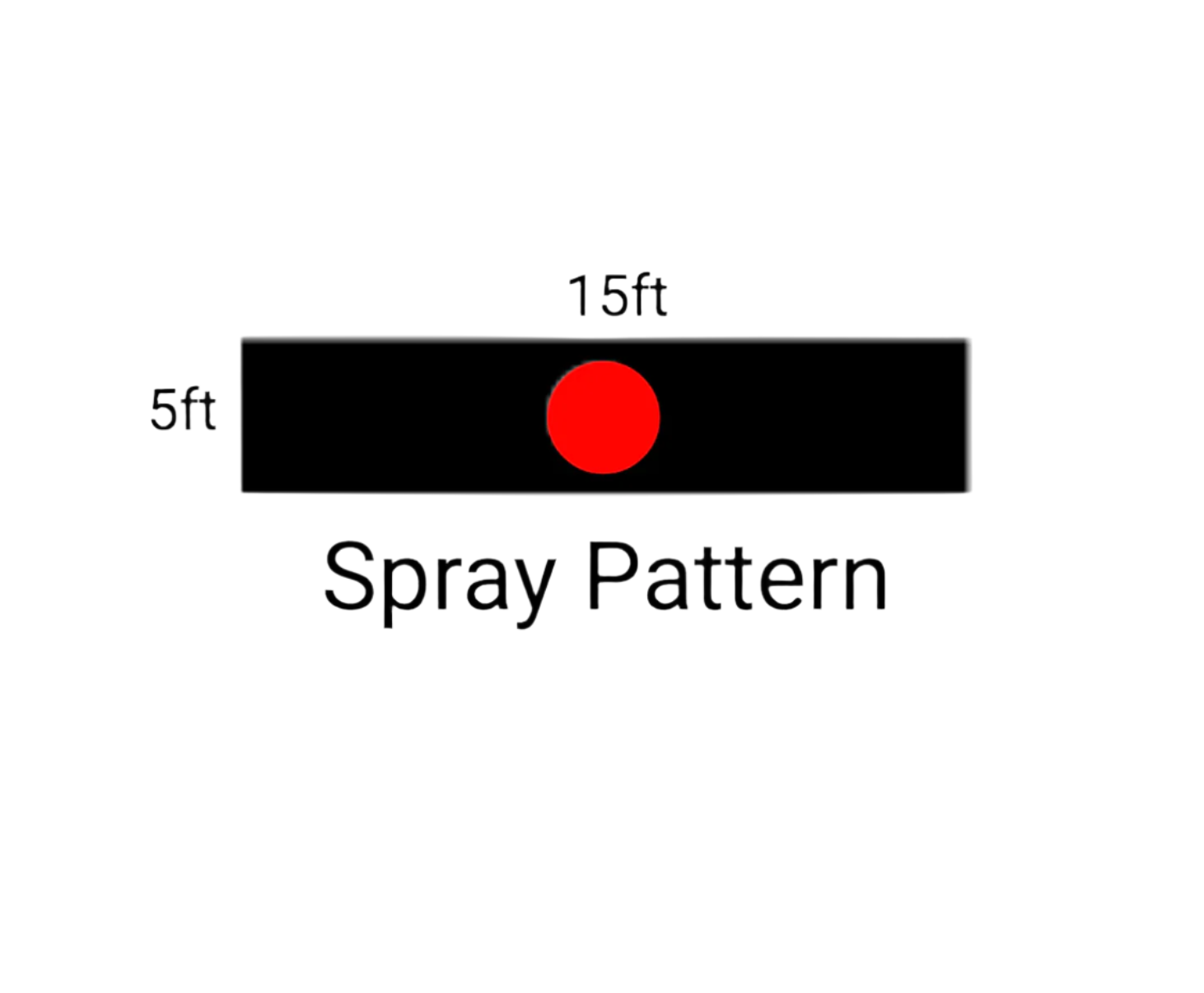

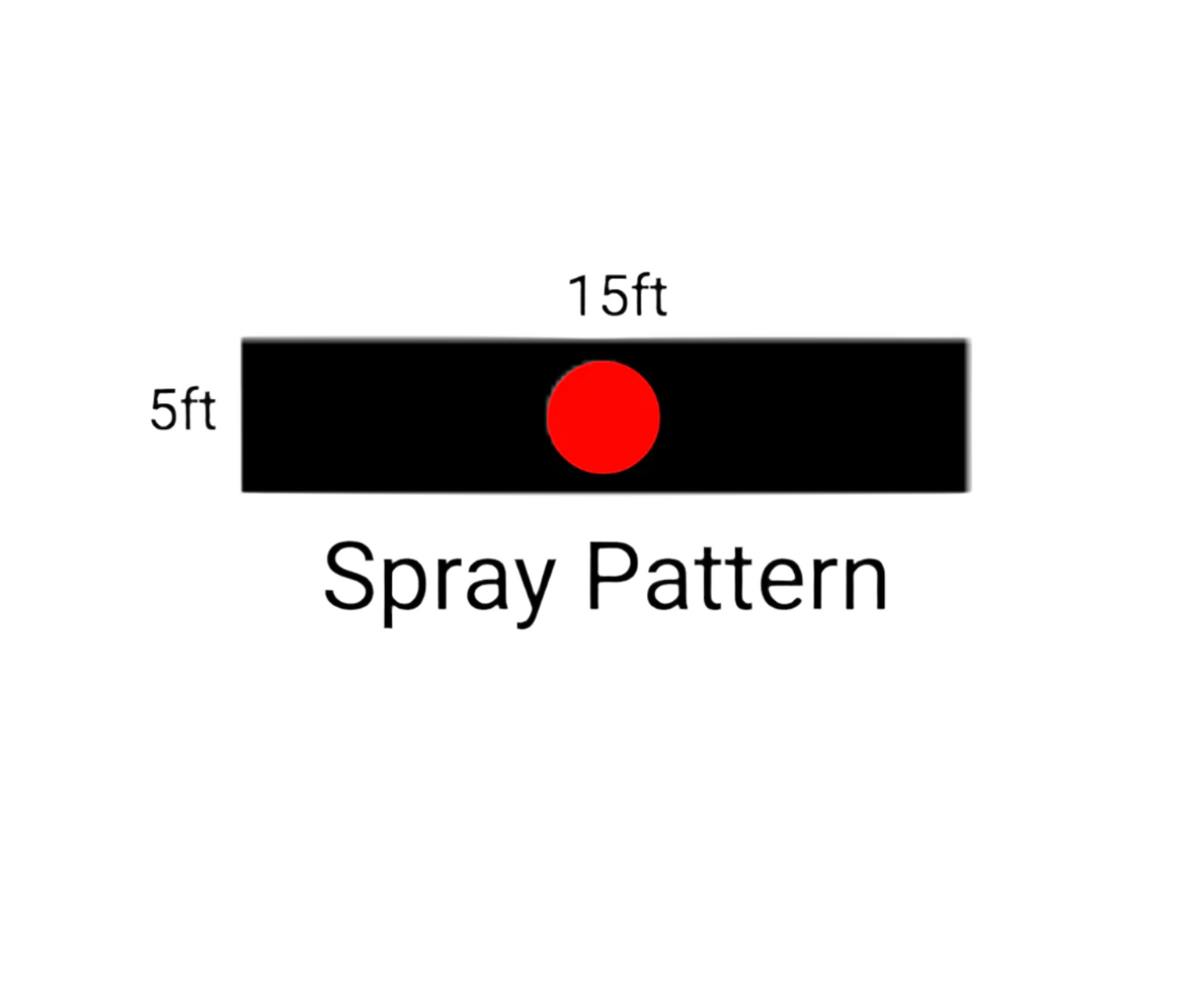

This is a 15ft Center Strip Nozzle is used to efficiently water long, narrow areas from the center outward. It produces a rectangular spray pattern with even coverage on both sides, making it ideal for medians, garden strips, sidewalks, and between rows of crops. This model fits all Rain Bird sprinklers and shrub adapters.
15' Radius Nozzle
Center Strip Nozzle
30° trajectory
Plastic
Black
Trusted for decades, Rain Bird® MPR Nozzles simplify the design process by allowing sprinklers with various arcs and radii to be mixed on the same zone while maintaining even water distribution rates. This allows them to spray an equal distance, and to provide an equal amount of water to a given area.
Code: 15CST Series MPR
This Rainbird model radius is 15ft, Center Strip
Features
15 ft. center-strip pattern MPR nozzle
Matched precipitation rates across sets and across patterns in 5 Series, 8 Series, 10 Series, 12 Series, and 15 Series for even water distribution and design flexibility
1800 Series white filter (.035" x .035") screens (shipped with nozzles) maintain precise radius adjustment and prevent clogging
Stainless steel adjustment screw to adjust flow and radius
Fits all Rain Bird sprinklers and shrub adapters
Specs
Spacing: 0,9m to 4,6m
Pressure: 15 to 30 psi (1 to 2,1 bar)
Optimum pressure: 30 psi (2,1 bar)*
* Rain Bird recommends using 1800 PRS spray heads to maintain optimum nozzle performance in higher pressure situations
