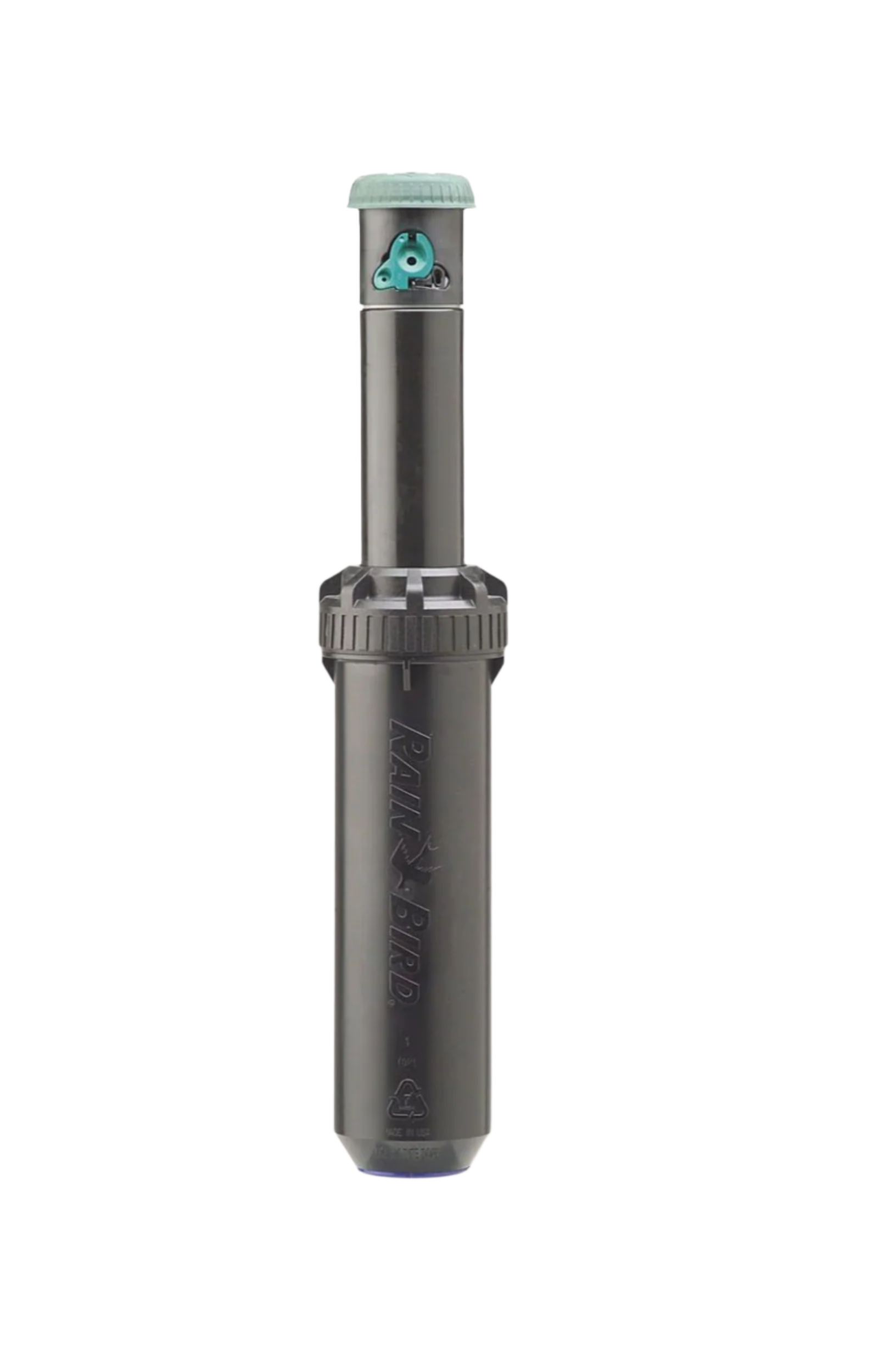

Gear Driven 125mm Pop-Up Sprinkler, Full and Part Circle Adjustable, 1" inlet
Sportfield and Commercial Full and Part-Circle Rotor Pop-Up Sprinkler
Radius: 11.9m - 24.7m
The Rain Bird® 8005 Rotor is built rugged to withstand the harshconditions and vandalism present in commercialrotor applications. It has been designed and tested to ensure the high reliability demanded by the market today. With its extensive customer identified features, it is versatile enough to fit allapplications. The Rain Bird® 8005 Rotor, with its extensive customer identified features and 24.7m radius, is ideal for watering sportsfields, parks, and other largeturf applications.
Rainbird Code: 8005
Features
Vandal resistance, brass reinforced turret for increased side impact durability
Memory Arc® returns the rotor to its original arc setting
Non-strippable drive mechanism prevents damage from vandals
Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from 50° to 330° part-circle, 360°non-reversingfull-circle. Full and part circle operation in one unit
Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection
SAM Seal-A-Matic check valve
3-port, color-coded Rain Curtain nozzles for optimal long-range, midrange, and close-in watering
5 year warranty

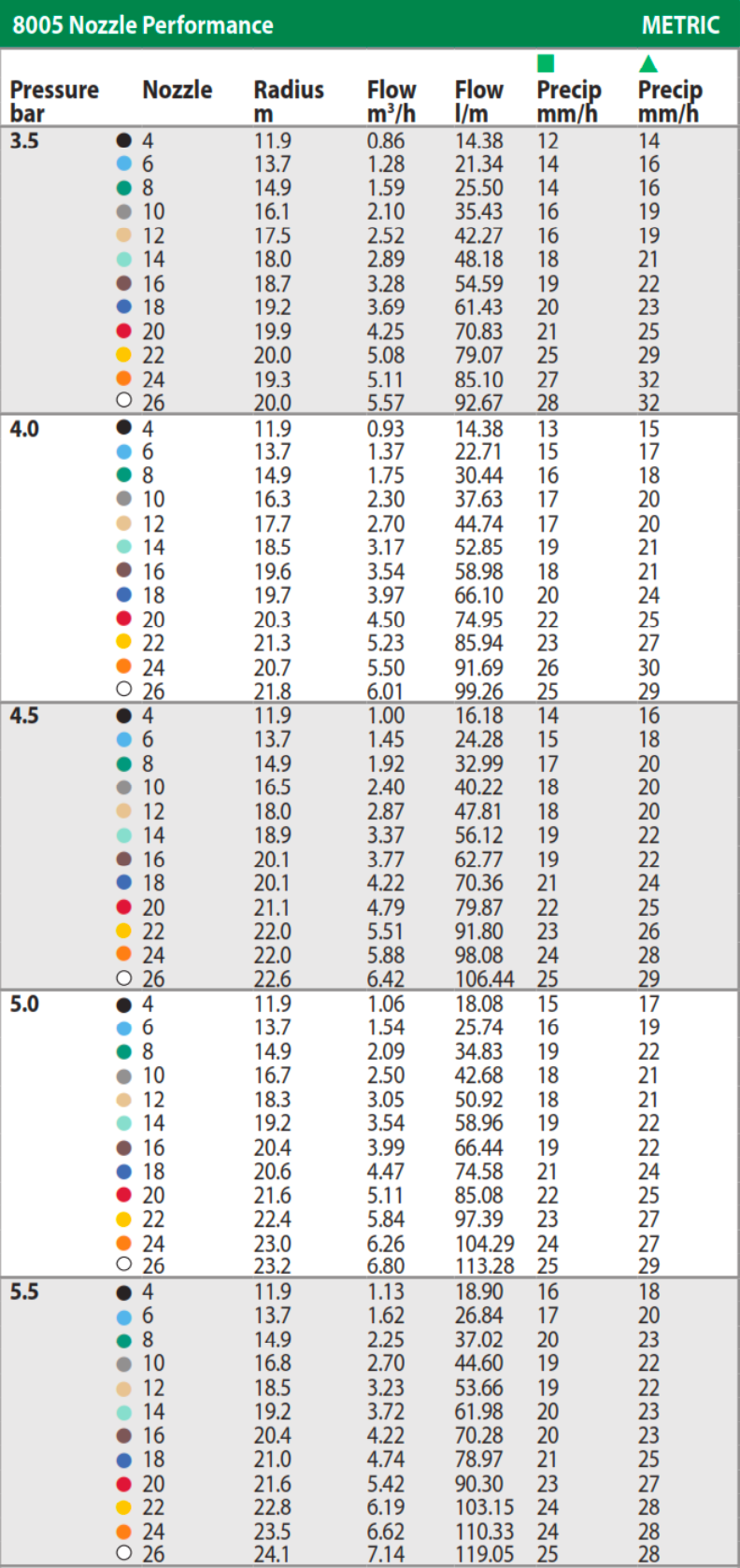

Specs
Radius: 11.9m to 24.7m
Precipitation rate: 12 to 31 mm/h
Pressure: 50 to 100 psi (3.5 to 6.9 bar)
Flow: 0.86 to 8.24 m3/h; 14.4 to 137.4 l/m
1" NPT or BSP female threaded inlet
SAM Seal-A-Matic™ check valve holds up to 10 feet (3.1 m) of elevation change
Nozzle outlet trajectory is 25º

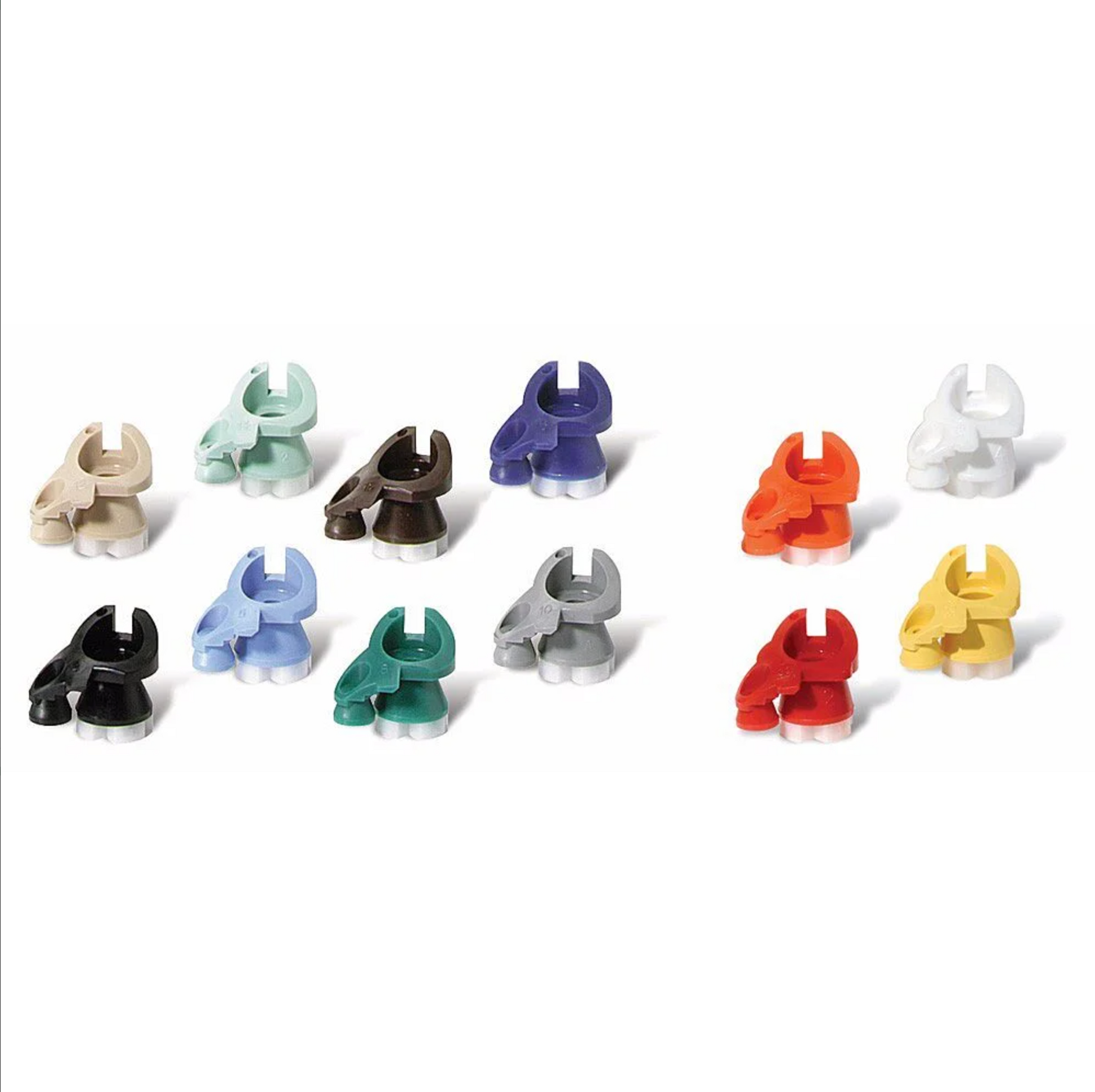

Rain Curtain™ Nozzles: Included with rotor, other sizes available upon request; 10-grey, 12-beige, 14-light green, 16-dark brown, 18-dark blue
This product is Equivalent to: K-Rain: 14003-BSP and 14003-SS-BSP are direct alternatives for the 8005 (Also sold on Aquadale) Hunter: I-25 to I-40
