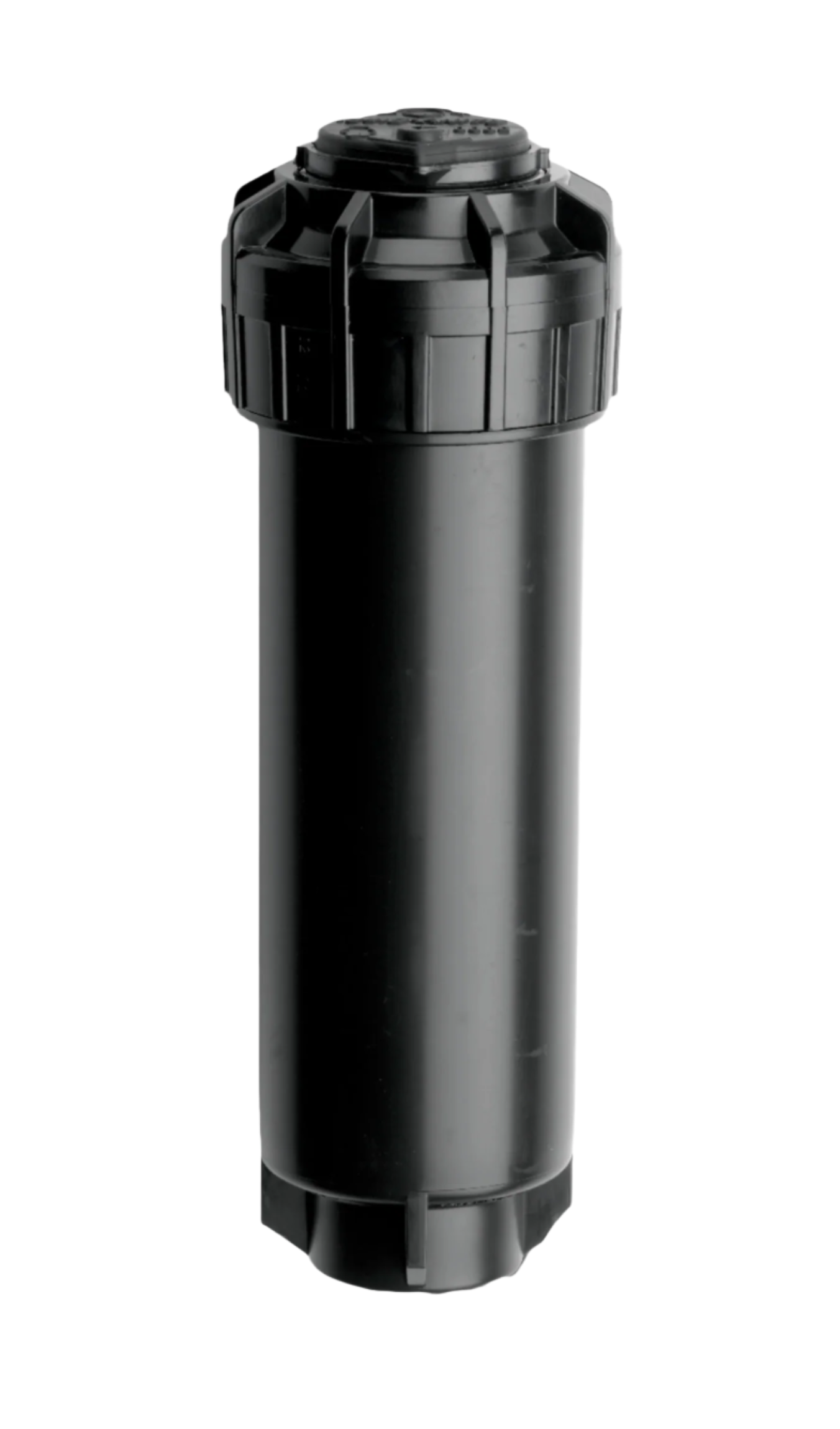

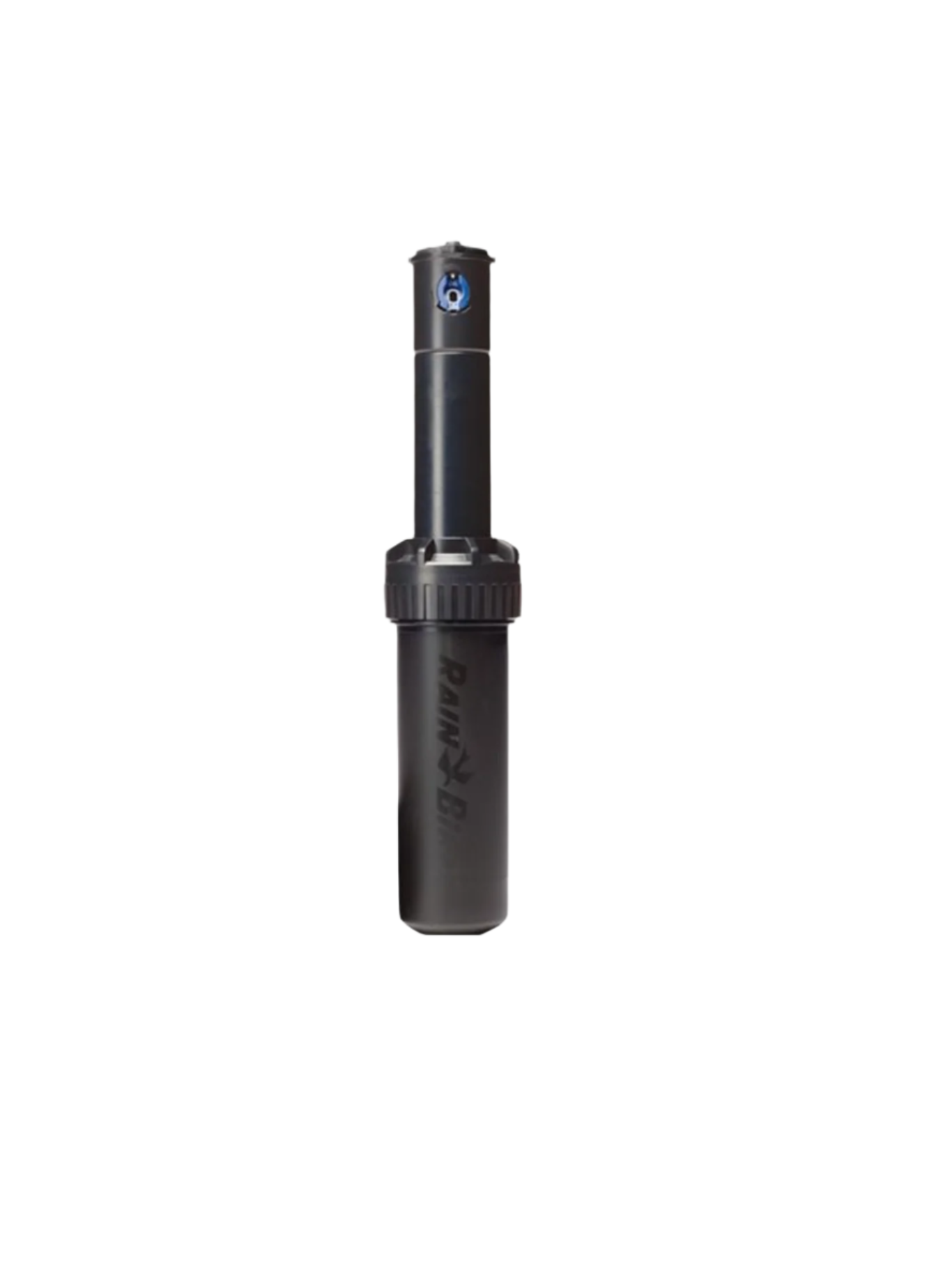

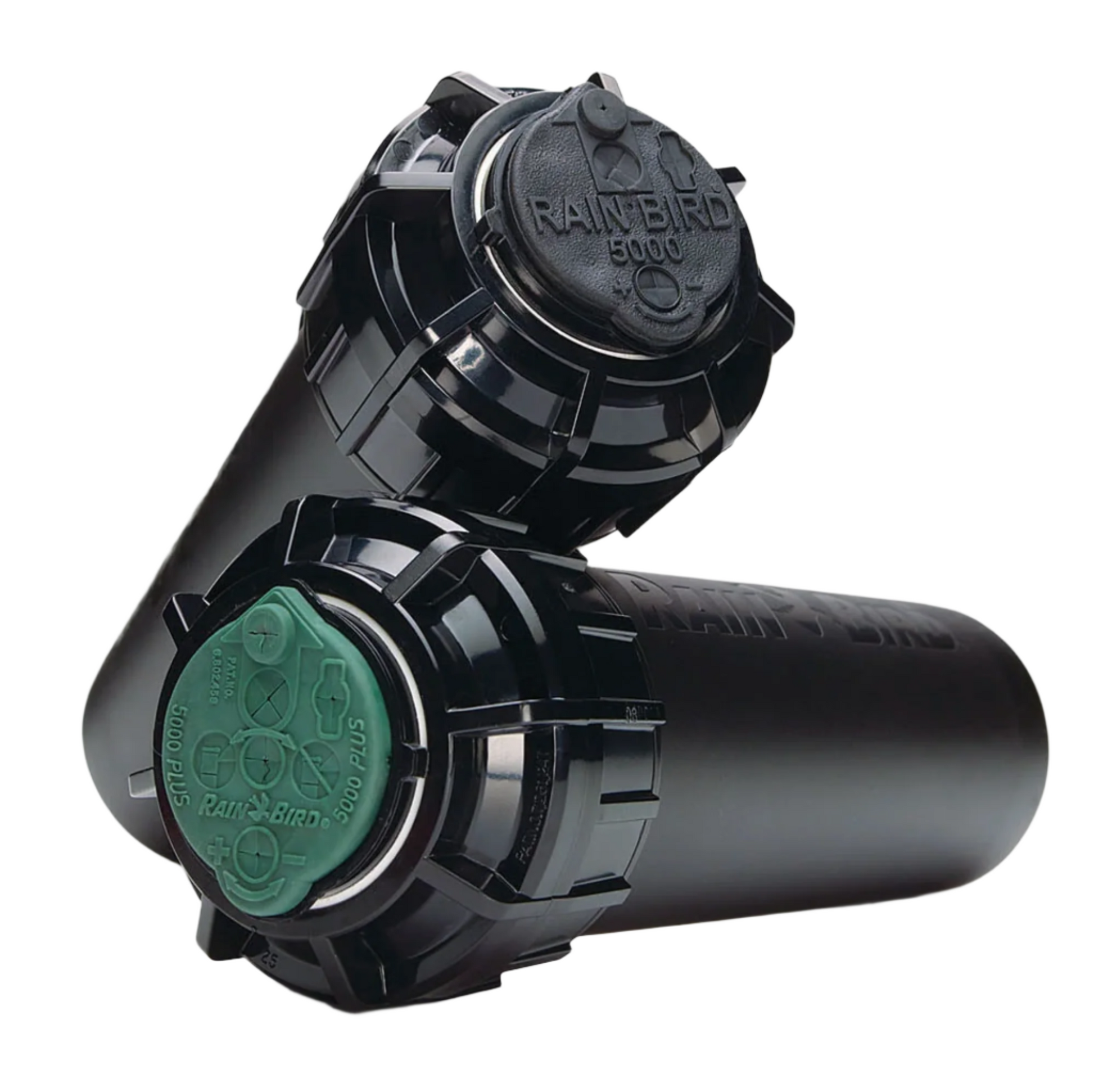

Rain Bird 5004PC Gear Driven 100mm pop-up Part Circle Adjustable
Radius: 7.6m to 15.2m
Engineered to be the Industry’s Most Reliable and Best Performing Rotor.
Offering unmatched performance from 7.6m to 15.2m, Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industry’s only Triple-Blade Wiper Seal with unrivalled Rain Curtain™ nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand.
Code: 5004PC
Features
Oversized wiper seal prevents leaks and protects internals from debris
Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
A history of proven performance and reliability tested in millions of installations

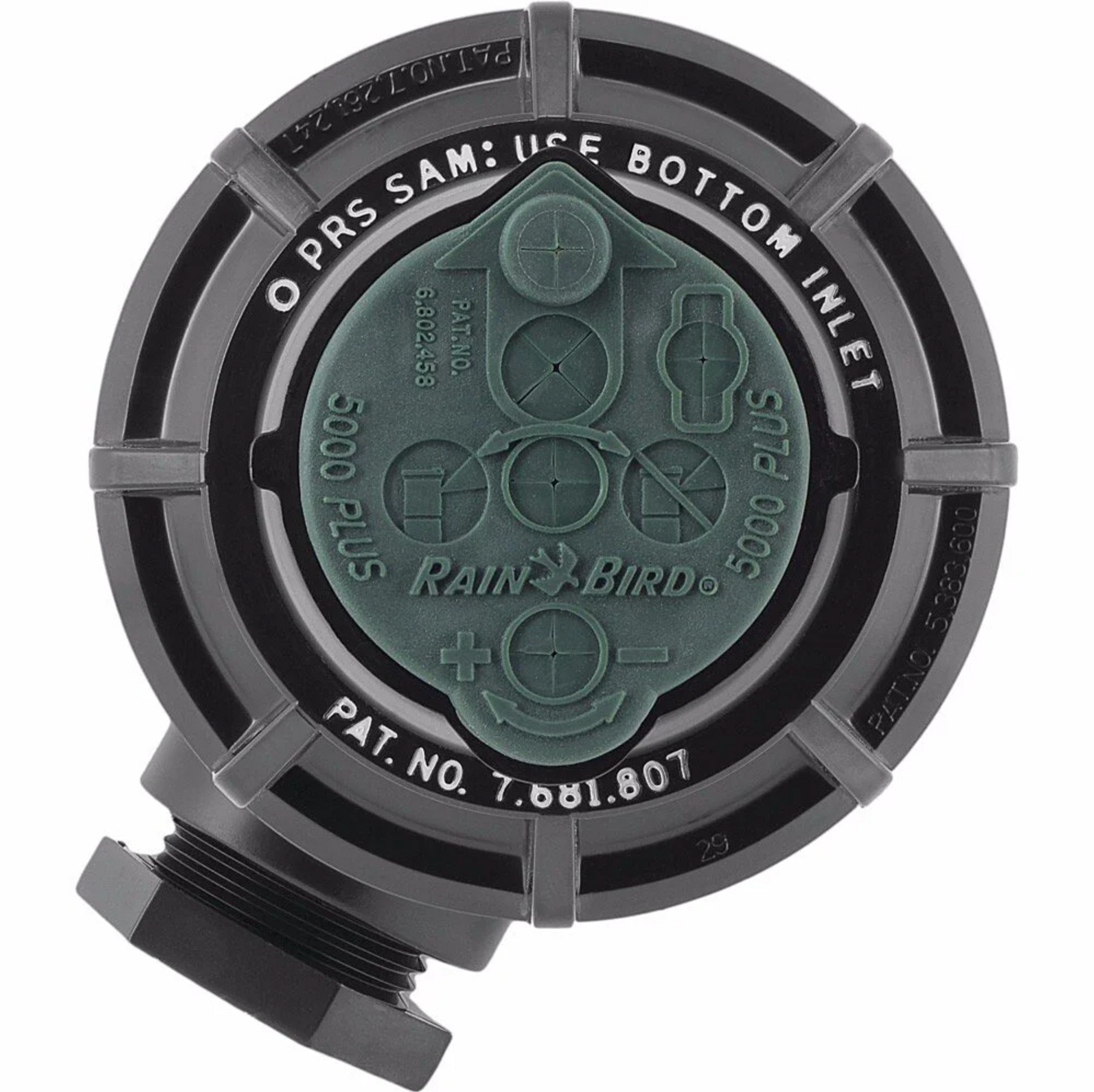

Self-flushing arc adjustment port that prevents buildup of debris
5 year trade warranty
Specs

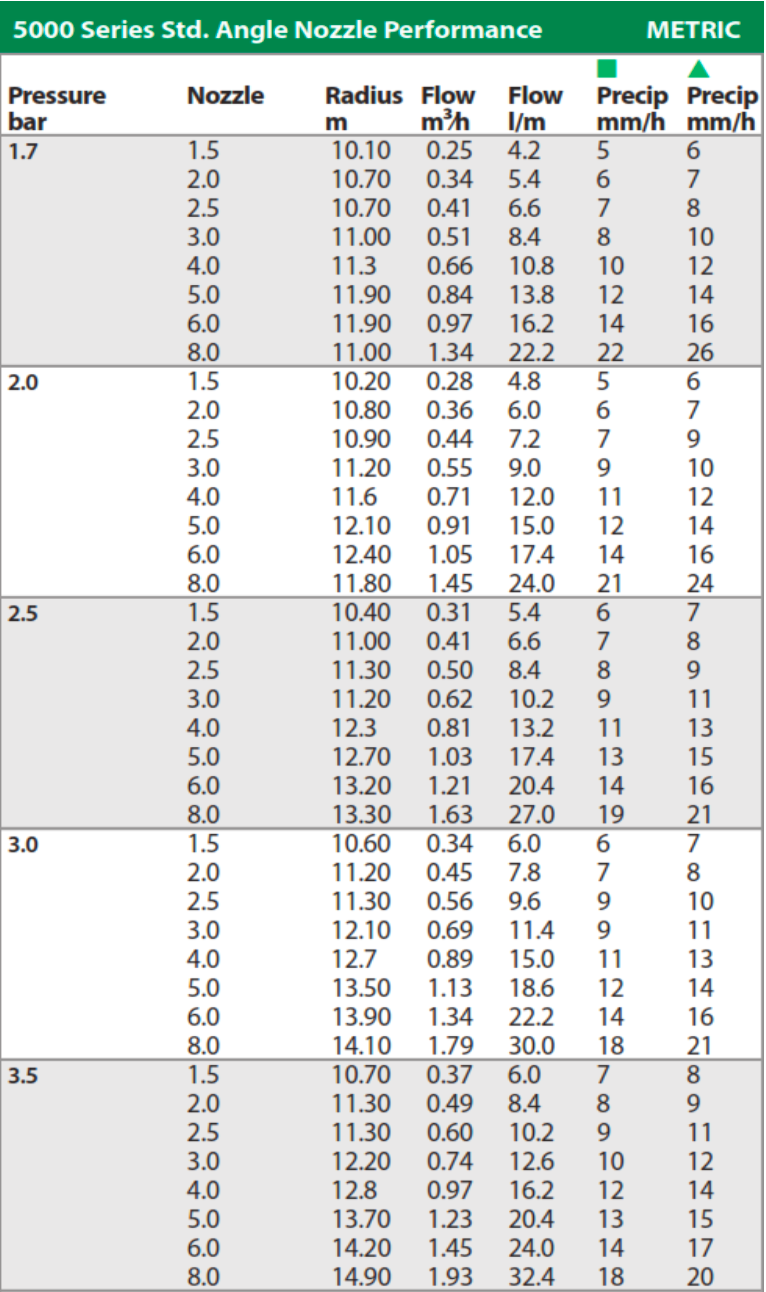

Precipitation rate: 0.20 to 1.50 in/hr (5 to 38 mm/h)
Radius: 25 to 50 feet (7.6 to 15.2 m)
Radius may be reduced up to 25% with radius reduction screw
Pressure: 25 to 65 psi (1.7 to 4.5 bar)
Flow Rate: 0.76 to 9.63 gpm (3.0 to 36.6 l/m; 0.17 to 2.19 m3/h)
Reversing full- and part-circle adjustment from 40° - 360°
Standard nozzle trajectory of 25°. Low angle nozzle trajectory of 10°. MPR nozzles varied nozzle trajectory between 12° - 25°.
This product is Equivalent to: K-Rain: RPS75 is a direct alternative for the 5004 (Also sold on Aquadale) Hunter: PGP rotor/I 20 - PGP & PGP Ultra Orbit: Voyager - 101803
