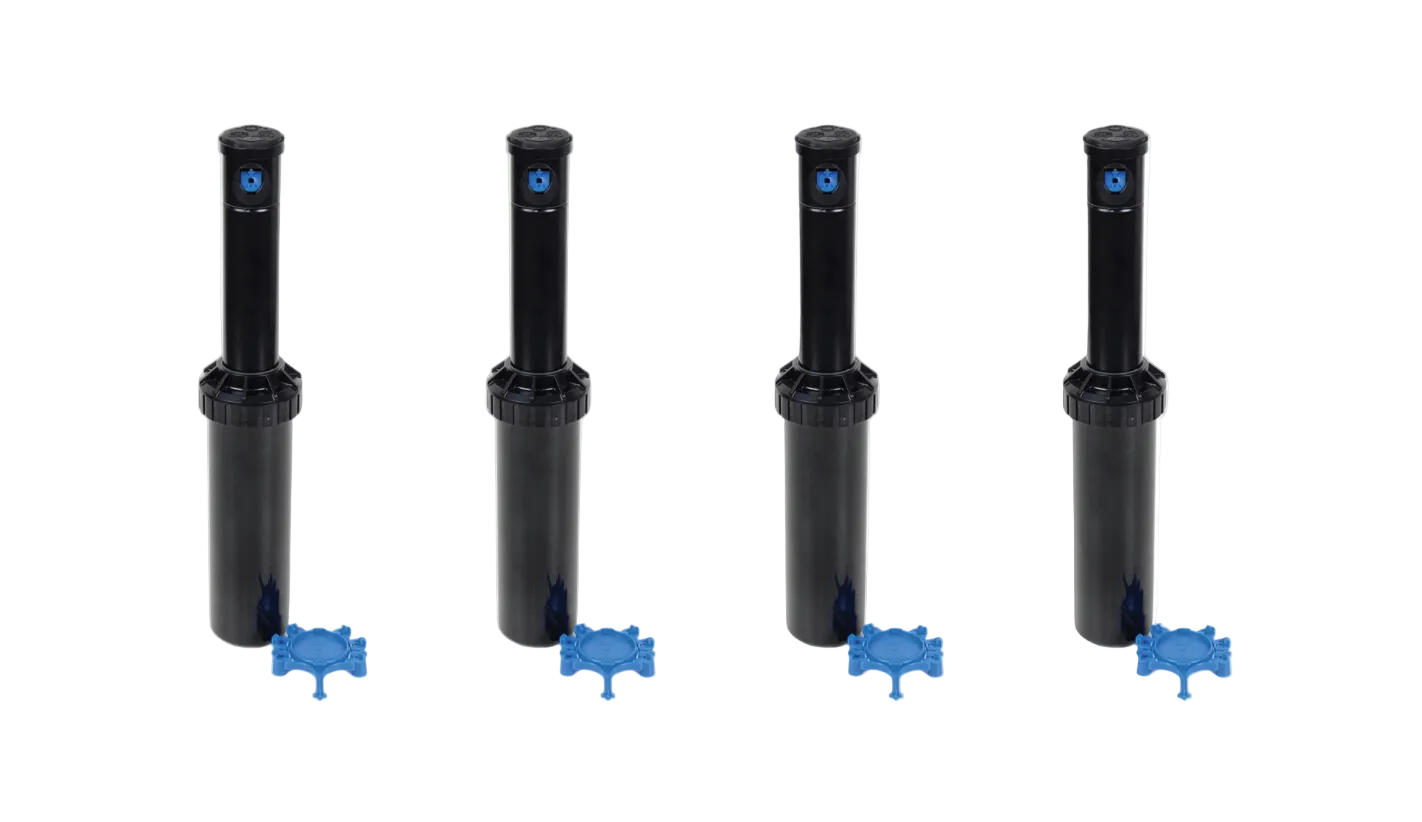

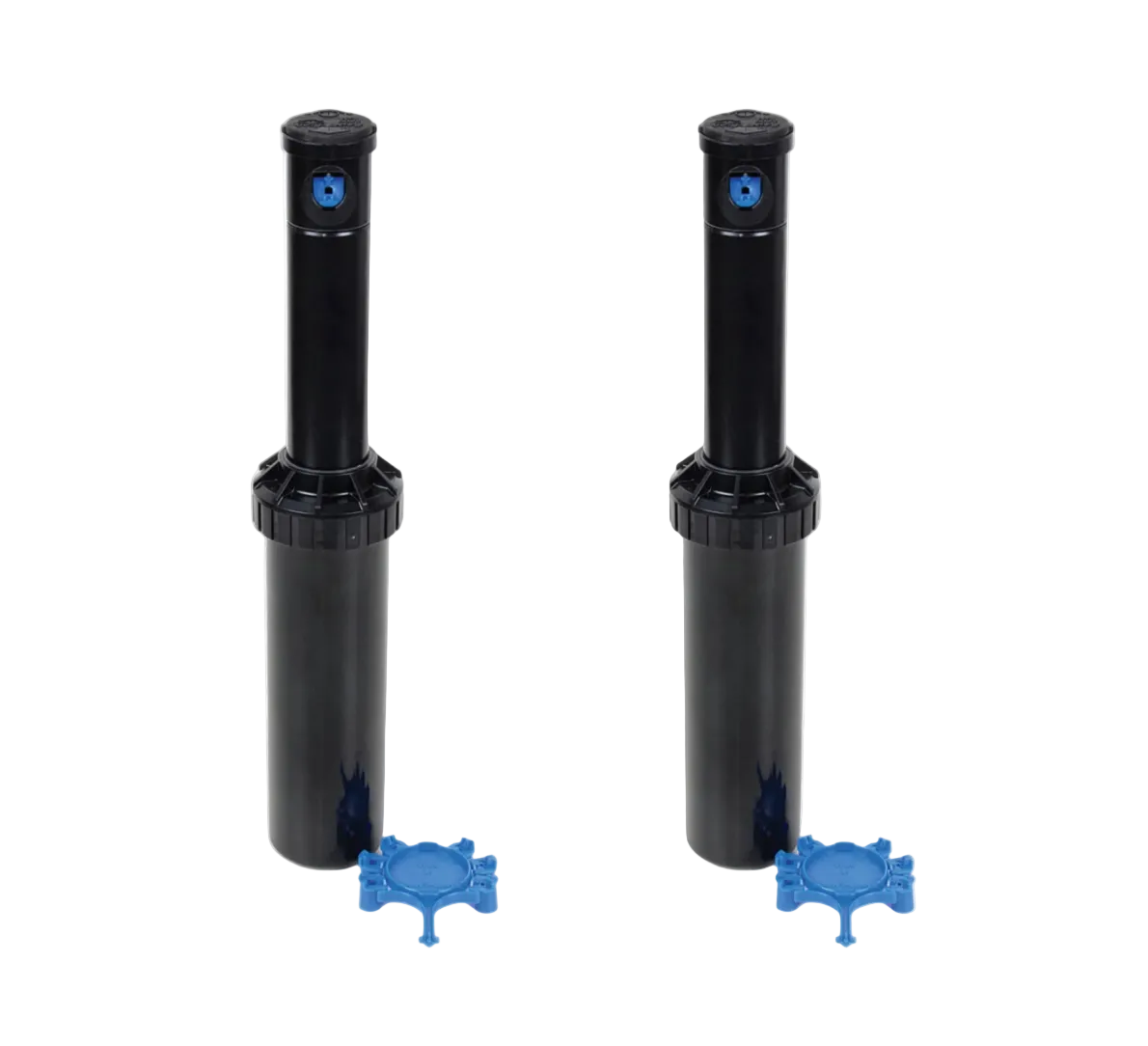

The 3500 Series Rotor is an easy to use short-to-mid-range ½" gear-drive rotor, offering value and convenience for residential applications. Utilising a simple flat-bladed screwdriver, the 3500's arcadjustment is quick and easy. This versatile rotor offers an attachablenozzletree with sixsuperior performing Rain Curtainnozzles, and the convenience of reversing full- and part-circle operation (up to 360degrees) in one unit. Plus, a nozzle-removal feature and an easily removable filter screen make maintenance a breeze.
All of this, an affordableprice, and a three-yearfactorywarranty make the 3500Series one rotor that is easy to use, easy to buy, and tough to beat.
Rainbird Code: RB3504
Features
Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
Oversized wiper seal prevents leaks and protects internals from debris
Arc adjustment through the top of the rotor requiring only a flat-blade screwdriver
Specs
Precipitation rate:0.37 to 0.83 inches per hour (9 to 21 mm/h)
Radius:15 to 35 feet (4.6 to 10.7 m)
Radius may be reduced up to 25% with radius reduction screw
Pressure:25 to 55 psi (1.7 to 3.8 bar)
Flow rate:0.54 to 4.6 gpm (2.0 to 17.4 l/m)
SAM Seal-A-Matic™ check valve holds up to 7 ft (2.1 m) of elevation change
1⁄2" NPT female bottom threaded inlet
Reversing full- and part-circle adjustment 40° - 360°
Nozzle trajectory of 25°
This product is Equivalent to: K-Rain: K-Rain 1/2" DIY K1 Rotator Spray is a direct alternative for the 3500 series (code 31031 - Also sold on Aquadale) Hunter: PGJ rotor Orbit: 101800
