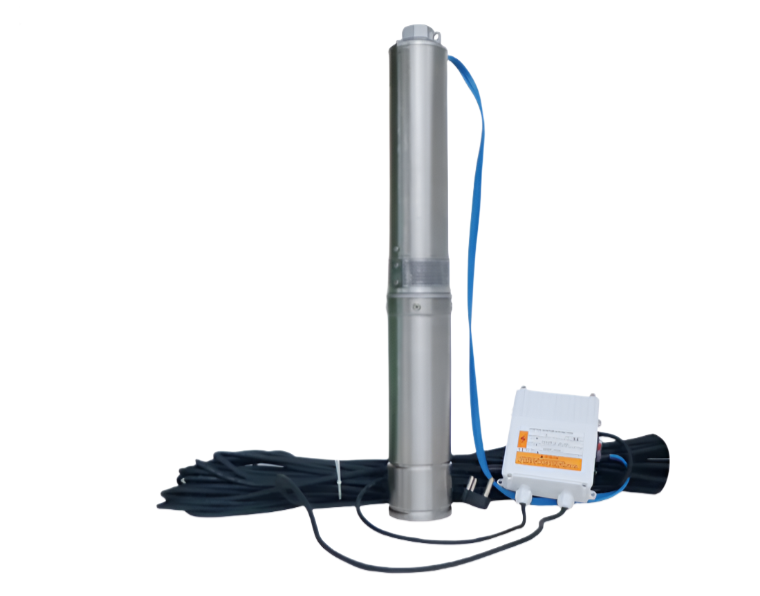

The JohnTech 4" Pump Set is a compact, complete solution for clean water supply. Designed for domestic, agricultural, and irrigation use, each set includes the key components needed for fast, hassle-free installation.
What's Included:
3" Borehole Pump 220v – Durable stainless-steel construction for long life and efficient performance
Oil-Filled Motor 220v – Quiet operation with IPX8 protection
Control Box – Motor protection and easy startup
Submersible Cable – 50m - 80m pre-cut and ready
Model Options:
Pump Set 1: JohnTech 4" 4SGM2-8 | 0.37kW
Maximum Head: 58 meters
Flow Rate: 55 liters per minute (3.3 m³/h)
Optimal Performance: Approximately 42 meters head at 30 liters per minute (1.8 m³/h)
Pump Set 2: JohnTech 4" 4SGM2-10 | 0.55kW
Maximum Head: 70 meters
Maximum Flow Rate: 60 liters per minute (3.6 m³/h)
Optimal Performance: Approximately 57 meters head at 30 liters per minute (1.8 m³/h)
Pump Set 3: JohnTech 4" 4SGM2-14 | 0.75kW
Maximum Head: 90 meters
Maximum Flow Rate: 60 liters per minute (3.6 m³/h)
Optimal Performance: Approximately 72 meters head at 30 liters per minute (1.8 m³/h)
Pump Set 4: JohnTech 4" 4SGM3-17 | 1.1kW
Maximum Head: 129 meters
Maximum Flow Rate: 80 liters per minute (4.8 m³/h)
Optimal Performance: Approximately 109 meters head at 40 liters per minute (2.4 m³/h)
Application:
Pumping clean water with sand content less than 150g/m³.
For well pumping, river pumping, farm irrigation, water supply.
Motor and Pump
2 pole induction motor
Single-phase: 220V 50Hz
Submersible motor in oil bath.
Insulation: Class B
Protection: IP X8
Operating Conditions
Submersible Depth: 100m Liquid temperature up to + 40 Degree
