The JohnTech 3" Pump Set is a compact, complete solution for clean water supply. Designed for domestic, agricultural, and irrigation use, each set includes the key components needed for fast, hassle-free installation.

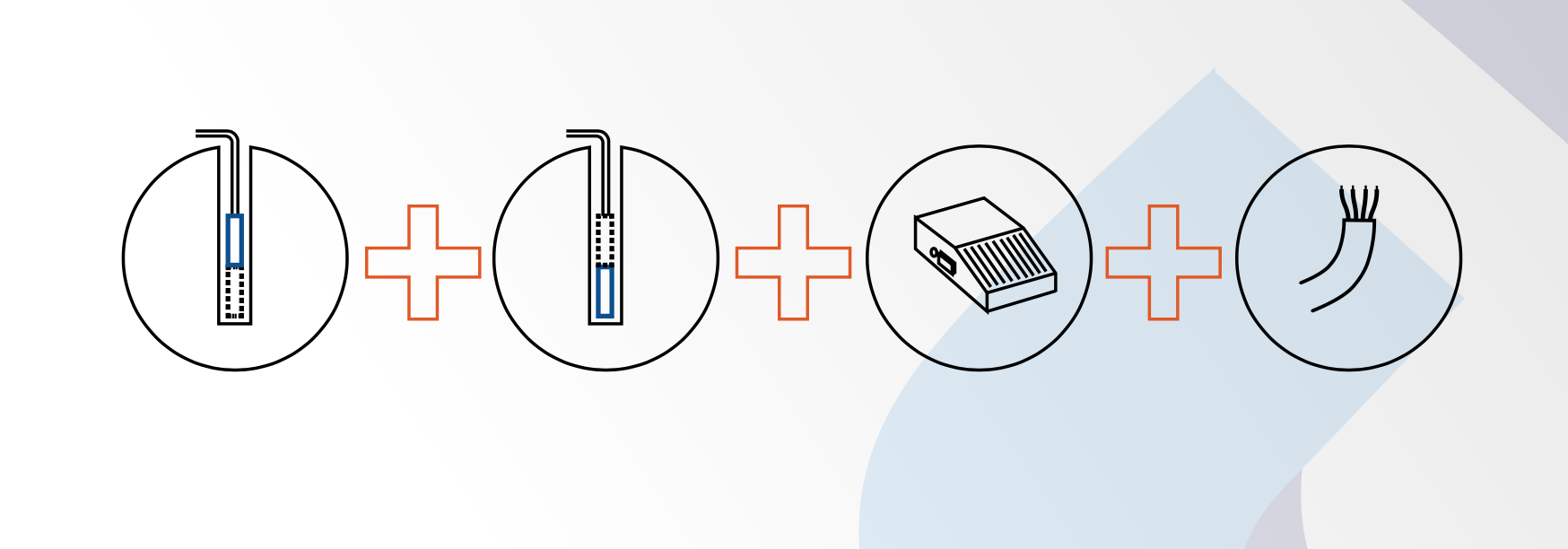

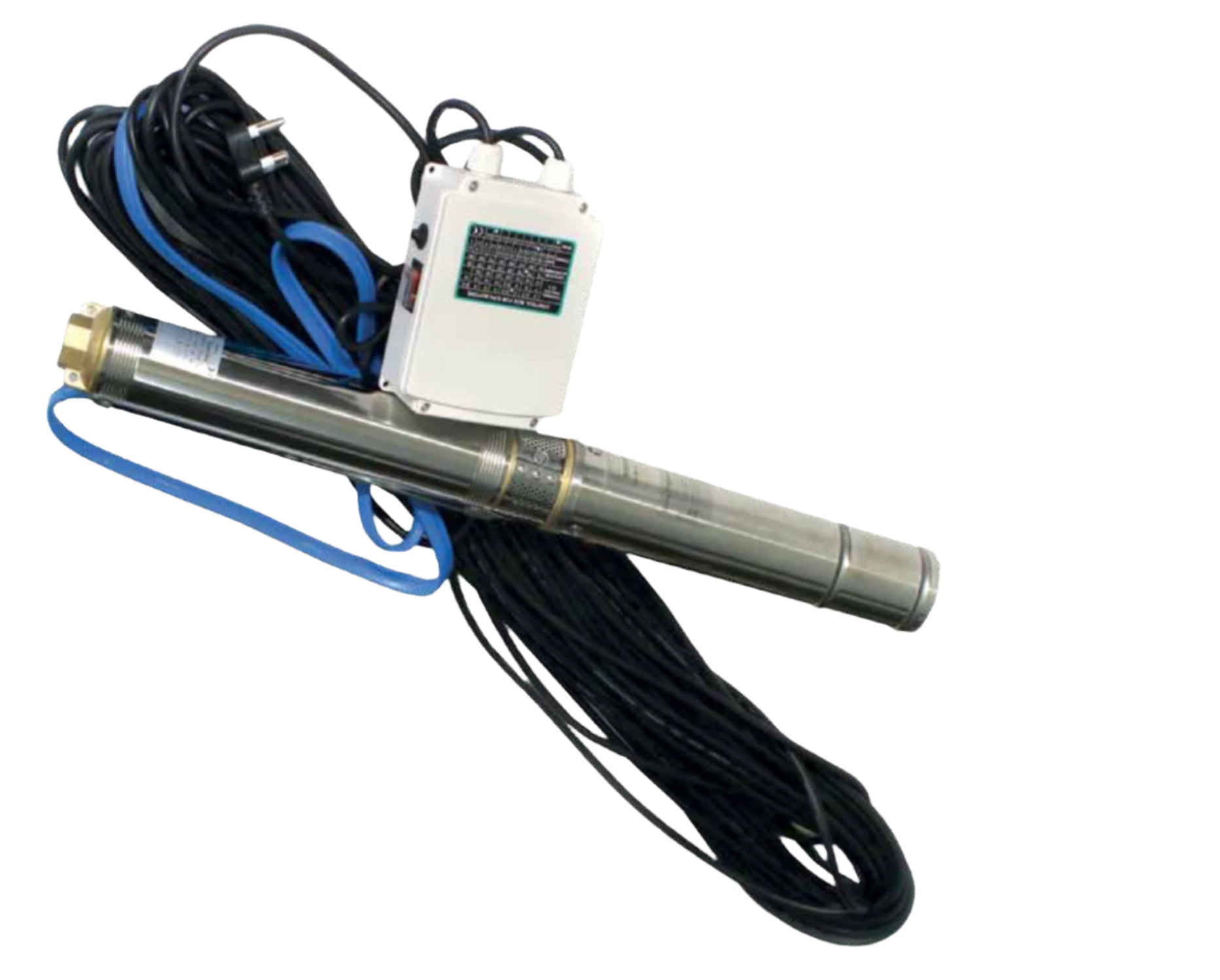

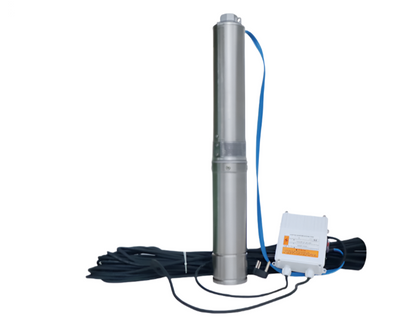

What's Included:
3" Borehole Pump 230v – Durable stainless-steel construction for long life and efficient performance
Oil-Filled Motor 230v – Quiet operation with IPX8 protection
Control Box – Motor protection and easy startup
Submersible Cable – 40m - 70m pre-cut and ready
Model Options:
Pump set 1: JohnTech 3" 3SGM2-10 | 0.25kW
Maximum Head: 42 metersMaximum
Flow Rate: 55 liters per minute (3.3 m³/h)
Optimal Performance: Approximately 30 meters head at 30 liters per minute (1.8 m³/h)
Pump set 2: JohnTech 3" 3SGM2-14 | 0.37kW
Maximum Head: 59 meters
Maximum Flow Rate: 55 liters per minute (3.3 m³/h)
Optimal Performance: Approximately 42 meters head at 30 liters per minute (1.8 m³/h)
Pump set 3: JohnTech 3" 3SGM2-20 | 0.55kW
Maximum Head: 84 meters
Maximum Flow Rate: 55 liters per minute (3.3 m³/h)
Optimal Performance: Approximately 60 meters head at 30 liters per minute (1.8 m³/h)
Pump set 4: JohnTech 3" SGM2-27 | 0.75kW
Maximum Head: 113 meters
Maximum Flow Rate: 55 liters per minute (3.3 m³/h)
Optimal Performance: Approximately 70 meters head at 30 liters per minute (1.8 m³/h)
Application:
Pumping clean water with sand content less than 150g/m³.
For well pumping, river pumping, farm irrigation, water supply.
Motor and Pump
2 pole induction motor
Single-phase: 220V 50Hz
Submersible motor in oil bath.
Insulation: Class B
Protection: IP X8
Operating Conditions
Submersible Depth: 100m Liquid temperature up to + 40 Degree
