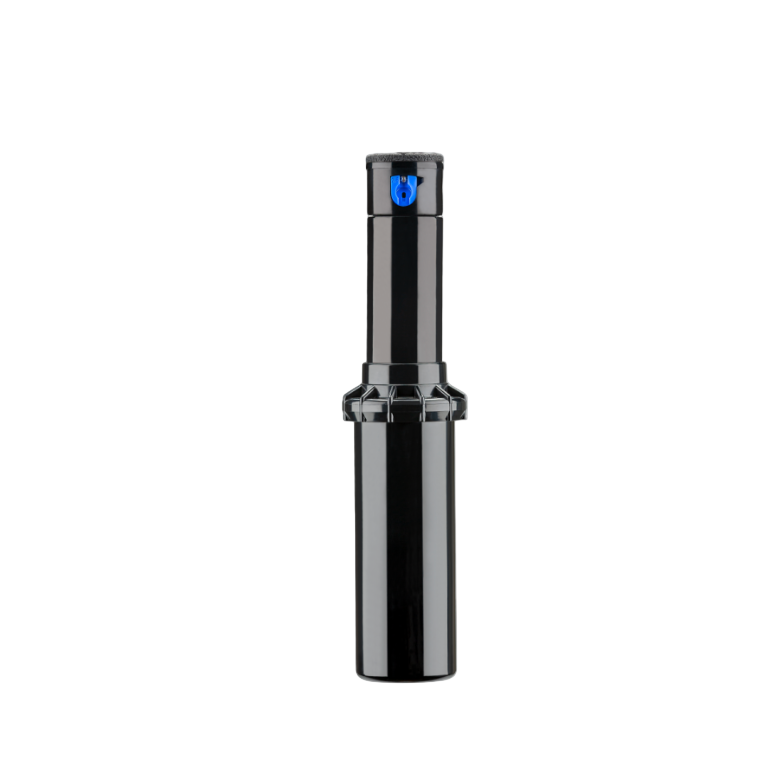

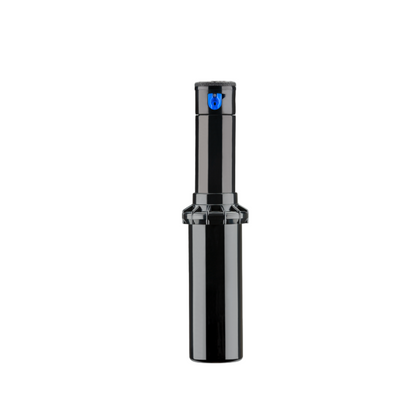

Hunter PGP Ultra ADJ 360° Pop-Up Gear-Driven Rotor 100mm

(6.7m – 15.2m RADIUS)

The Hunter PGP Ultra ADJ 360° Pop-Up Gear-Driven Rotor 100mm is a versatile irrigation rotor built for medium turf and shrub areas where adjustable full-circle coverage is needed. Featuring a smooth gear drive, reliable arc adjustment, and easy maintenance design, it delivers consistent performance for residential, commercial, and landscaped zones. The unit includes both standard and low-angle nozzles for tailored coverage and reduced misting.

Hunter Code: PGP-Ultra-100

Features

• Adjustable 360° full-circle arc
• Gear-driven rotor for smooth, reliable rotation
• Pop-up height: 100 mm for low-profile installations
• Flat-blade screwdriver arc and radius adjustment
• Standard and low-angle nozzle options
• Removable filter screen for easy cleaning

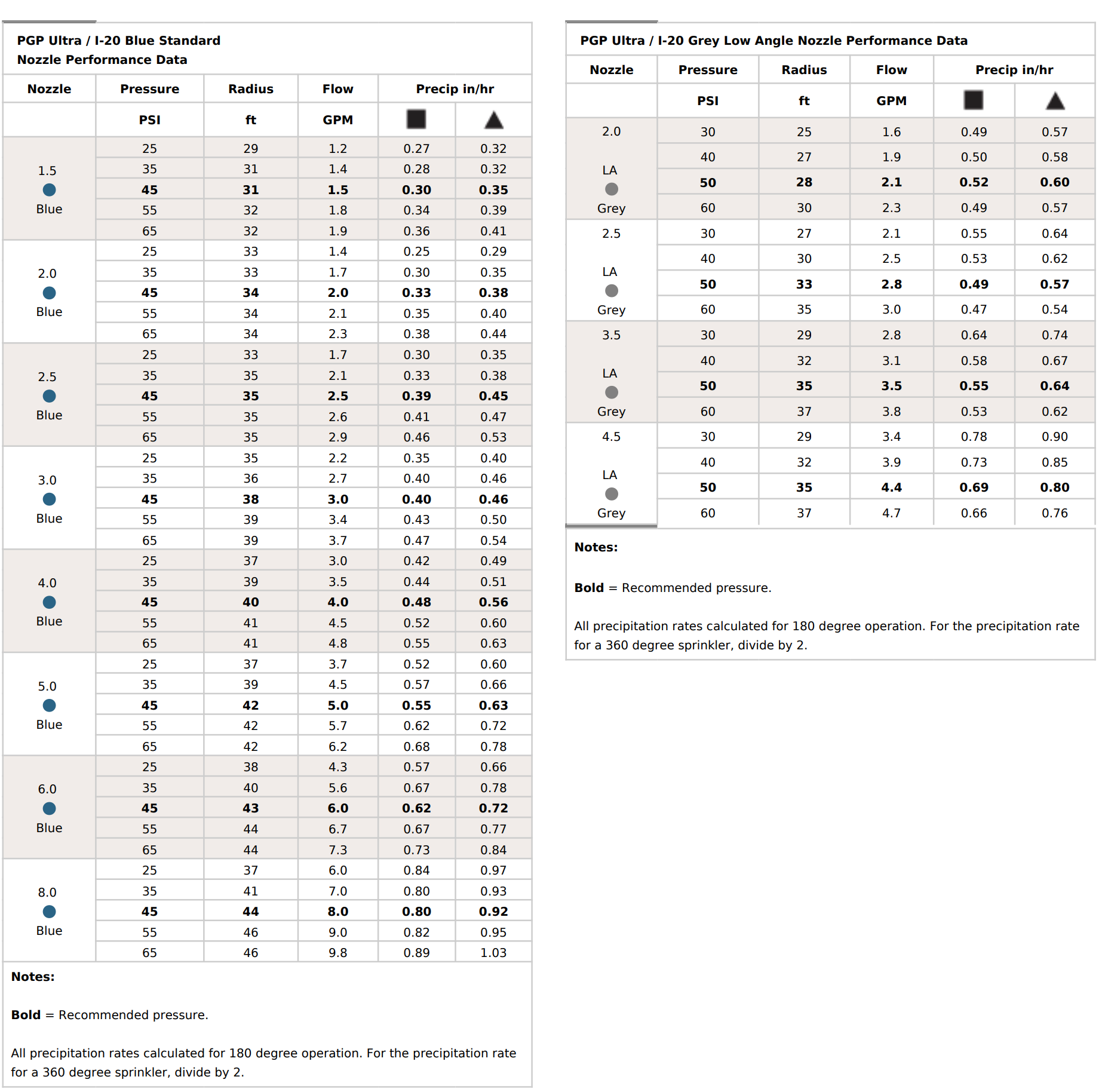

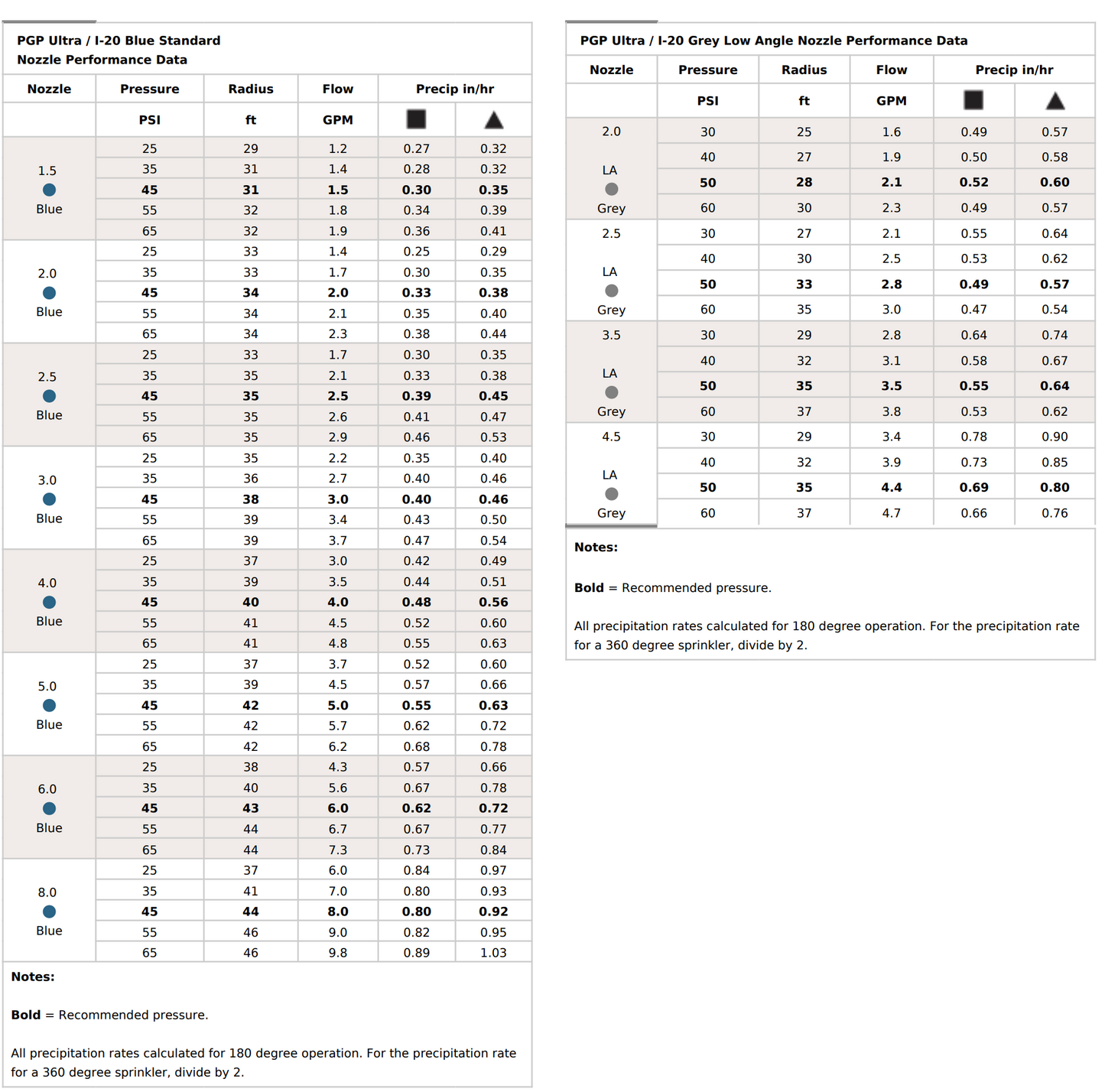

Specs

• Radius: 6.7 – 15.2 m
• Operating Pressure: 2.1 – 7.0 bar
• Flow Rate: 5.0 – 63.0 L/min
• Pop-Up Height: 100mm
• Inlet: ½" female threaded
• Arc: Adjustable 360°
• Application: Medium lawns, shrub landscape areas

This product is Equivalent to:

• Rain Bird: RB5004PC Full-Circle Rotor
  (Similar full-circle rotor performance and radius range)
• K-Rain: RPS75 Gear Driven Rotor (closest K-Rain gear rotor with similar range/application)
• Orbit: Voyager 104 Full-Circle Gear Rotor
  (Orbit’s ½″ full-circle rotor with similar radius and functionality)
